DLNA(upnp)

DLNA Server​

Media providers can place media files on media servers, and software that can access media files directly can be accessed.

For example: Windows platform,Serviio

DLNA Player​

HiByMusic​

You can access the audio files of the DLNA media server and then output them locally. Pushing files to the DLNA renderer is not supported for the time being. Use cases: Open HiByMusic in HiBy R4, and then be on the same network as the PC with Servio installed, that is, directly access the audio files on the corresponding PC through HiBy R4.

NetEase Cloud​

info

NetEase Cloud 9.1.61 (Android)

The audio files of NetEase Cloud Server can be pushed to the DLNA renderer through the DLNA protocol. Use cases:

  1. Open the HiBy player;
  2. Turn on the DLNA function on the HiBy player, connect to the WiFi network, and make sure that the phone using NetEase Cloud is on the same network;
  3. Open NetEase Cloud on your phone, click on the headset icon on the playback interface, select the listed HiBy player, and then you can push NetEase Cloud's audio files to the HiBy player to play;
  4. Since some mobile phones may kill the background, please avoid letting your mobile phone kill NetEase Cloud. You can avoid being killed by the system. Refer

The device shown in the figure below isHiByMusic

Netease Music Netease Music

Kugou​

info

Kugou 12.4.4 (Android)

Audio files in Kugou Media Library can be pushed to the DLNA renderer through the DLNA protocol. Use cases:

  1. Open the HiBy player;

  2. Turn on the DLNA function on the HiBy player, connect to the WiFi network, and make sure you are on the same network using Kugou;

  3. Open Kugou, and click to the playing interface. Follow the following figure to push Kugou's audio file to the HiBy player to play;
    Kugou

  4. Select equipment delivery;
    Kugou Kugou

  5. Choose HiByMusic;
    Kugou

  6. It indicates that DLNA is being pushed;
    Kugou

The device shown in the figure isHiByMusic

Audirvana Studio​

info

Audirvana Studio 2.8.4(20804) (Windows)

Audio files from Audirvana Studio media library can be pushed to the DLNA renderer through the DLNA protocol. Use cases:

  1. Open the HiBy player;
  2. Turn on the DLNA feature on the HiBy player, connect to the WiFi network, and make sure you are on the same network using Audirvana Studio;
  3. Open Audirvana Studio and follow the following figure to push NetEase Cloud's audio files to the HiBy player to play;

The device shown in the figure below isHiByMusic

Audirvana Studio Audirvana Studio

BubbleUPnP​

info

BubbleUPnP 4.4.5 (Android)

Audio files in the BubbleUPnP media library can be pushed to the DLNA renderer through the DLNA protocol. Use cases:

  1. Open the HiBy player;

  2. Turn on the DLNA feature on the HiBy player, connect to the WiFi network, and make sure you are on the same network using BubbleUPnP;

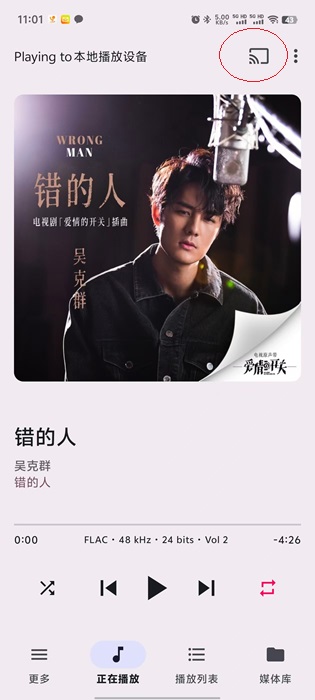

  3. Open BubbleUPnP and click to the playback interface. Follow the following figure to push the BubbleUPnP audio file to the HiBy player to play;
    BubbleUPnP

  4. Select equipment delivery;
    BubbleUPnP BubbleUPnP

The device shown in the figure isHiByMusic

Foobar + DLNA Plugin​

Dlna rendering​

HiBy Player Series​

Use cases:

  1. Open the HiBy player;
  2. Turn on the DLNA feature on the HiBy player, connect to the WiFi network, and make sure it is on the same network as DLNA Player;

other​

Basically all smart TVs support direct pushing DLNA streams, such as LeBo and the TV side corresponding to each video website.
