HiBy Project Ace
1. Product Overview
2. Headphone technical characteristics
- 12mm large diameter moving coil unit
The area of the 12mm large-diameter moving coil unit that pushes air is 1.44 times that of 10mm and 2.25 times that of 8mm. Different from common-sized dynamic speakers, Project Ace uses larger-diameter speakers in a limited space, while showing accurate high-frequency timbre and richer low-frequency and mid-frequency details. After repeated verification in various new processes and materials, we finally found the sweet spot for Project Ace to achieve the five major acoustic design goals - the fusion of magnesium alloy and beryllium plating technology - allowing Project Ace's sensitivity at 1kHz can still be maintained at an easy-to-drive level of 115dB, making it easy to drive whether on a smartphone or a professional player.
-
Ultra-fast response beryllium-coated diaphragm Precision-made beryllium-plated diaphragm, beryllium is light in weight and extremely fast in sound. After our careful production, the beryllium-plated diaphragm responds quickly and accurately to the ultra-high frequency, and the effect is significantly improved. It is very suitable for showing rich high-frequency details and wonderful timbre texture.
-
New magnesium alloy dome speakers The dome part of the speaker uses magnesium metal, which is lighter than beryllium, in order to further reduce its density and mass and increase its hardness and shock resistance. We specially added lighter lithium elements to it. After extrusion and specific annealing processes, the lithium ions are evenly distributed and deposited into the crystal framework of magnesium ions, and some dendritic structures tend to transform into cellular structures. The application of this new type of magnesium alloy dome greatly improves Project Ace's unit driving efficiency, making the bass performance deep and full.
-
High magnetic core drive The advantages of magnesium alloy domes and beryllium-plated diaphragms, reinforced coils, and peripherally designed high magnetic circuit systems enable Project Ace to achieve excellent electroacoustic conversion efficiency.
-
Newly designed "T.B.A.C." triple independent sound chamber We have evolved a new airflow guidance model based on FAudio's patented technology "T.B.A.C." (triple acoustic cavity). For this special new unit, we have redesigned the structure and flow guidance method of the triple acoustic cavity to bring efficient airflow performance and natural sound playback effects.
New generation "T.B.A.C." triple acoustic cavity cavity one It is specially designed for the moving coil unit that houses the 12mm magnesium alloy dome. It is made with high-precision grinding tools to ensure high consistency. It effectively eliminates the instability and excess airflow of traditional moving coils, thereby greatly reducing distortion.
Cavity 2 The metal structure enhances the rigidity of the entire unit to avoid excessive resonance, and the airflow is adjusted through the air holes on the rear wall to achieve a powerful tuning effect.
Cavity three It effectively releases excess air pressure in the ear canal while stabilizing the air flow, providing a continuous flow of air to the unit, enhancing the clarity of the overall sound, and making the layered performance of the beryllium-plated diaphragm more distinct.

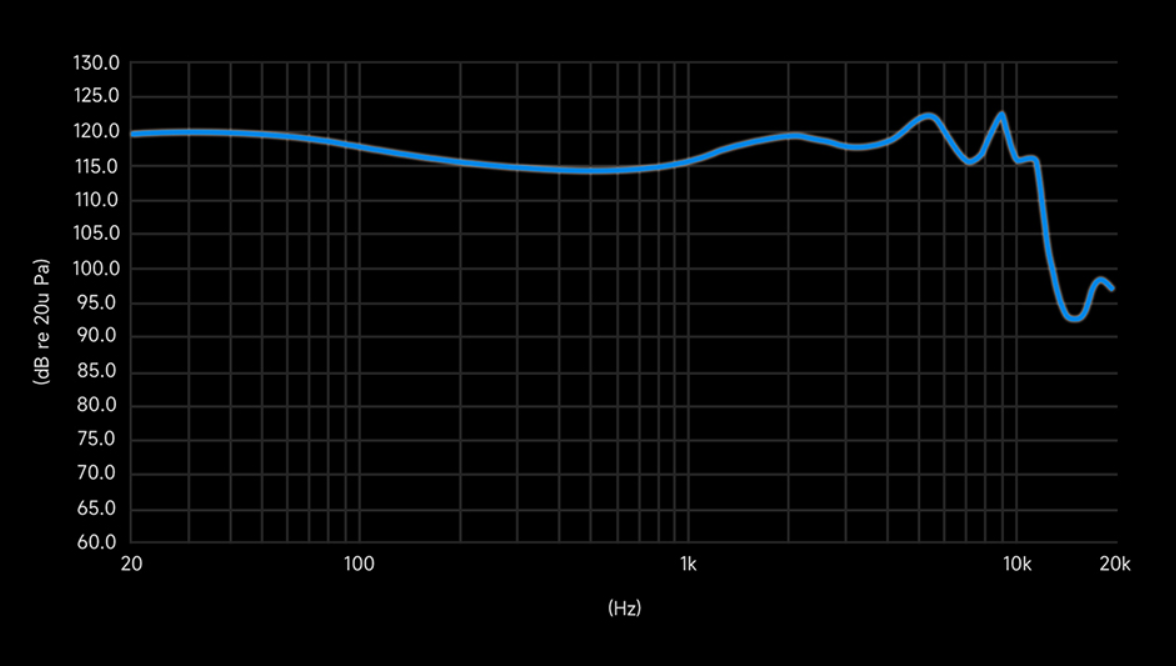

Frequency response diagram
3. Headphone hardware parameters
| Headphone cover material | High-strength aluminum alloy shell |
|---|---|
| Single-sided driver unit | 12mm magnesium alloy & beryllium-plated diaphragm moving coil unit |
| Wire specifications | Litz Type5 coaxial shielded braiding solution Copper core and copper silver-plated wire core 1:1.6 hybrid braided eight-core fully balanced headphone cable 4PIN-LOCK multi-functional replaceable plug |
| Cord length | 1.25cm |
| Interface type | 0.78/2-pin replaceable cable |
| Weight | 8.3g |
4. Acoustic parameters
|Comprehensive impedance |32Ω| |Frequency response| 20-20,000 Hz| |Sensitivity| 115 dB 1k Hz| |Total Harmonic Distortion| < 1%|
5. How to wear headphones
-
Both the left and right sides of this headset and its wire need to be distinguished. L represents the left ear and R represents the right ear. The L/R mark of the headset is located next to the earphone vent. The L/R mark of the wire is located inside the 2-pin double-pin male connector. The correct connection method between the headset and the wire is as follows:
-

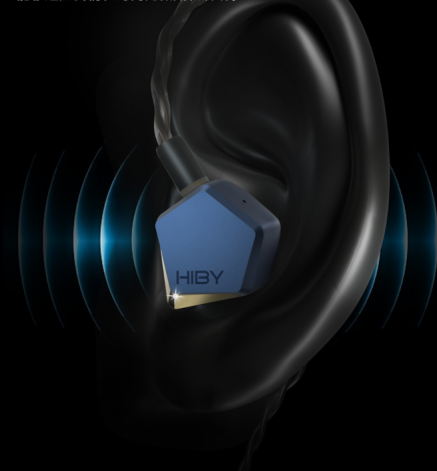

After connecting and assembling the earphones, wear them around the ears. The correct wearing method is as follows. When wearing, please choose an earphone cover of the appropriate size according to your ear size to ensure a tight and comfortable wearing feeling. This earphone is an in-ear earphone. Poor sealing will cause low-frequency loss, reduced sound quality analysis, etc., affecting the listening effect. Please wear it normally.
6. Things to note when wearing HiFi headphones
- When wearing or storing headphones, please avoid high temperature, low temperature, humid or dusty environments to prevent damage to the headphones or affect the sound quality. It is recommended to store them in a special moisture-proof storage bag to reduce damage.
- Do not immerse the earphones in water to prevent liquid from entering the unit or cable. If there are water stains after use, wipe them dry in time.
- Avoid excessive pulling or bending of the headphone cable, which may cause internal breakage of the line.
- Avoid dropping the earphones hard to prevent internal parts from loosening.
- When connecting the device, do not insert or pull out the plug forcefully to avoid damaging the plug or device interface.
- When wearing it for a long time, you need to let your ears rest for a while to avoid ear fatigue and hearing damage; at the same time, avoid listening at high volume for a long time, which can not only protect your hearing, but also better preserve the unit performance.
- If the earphones malfunction (such as sound quality distortion, silence, poor contact, etc.), please do not disassemble and repair it yourself. You should contact the brand's official after-sales service to avoid affecting the product warranty.
- When cleaning the earphones, please use a dry and soft cloth to wipe them. Do not use corrosive cleaners such as alcohol and acetone to avoid damaging the unit casing and wire sheath. Pay attention to regular cleaning of the earphone covers to keep them clean and hygienic.
