HiBy R4MIDI Manual

Welcome to use HiBy Music’s products

Thank you for purchasing R4MIDI, a portable high-definition lossless music player launched by HiBy. In order to bring you a better experience with R4MIDI, this article introduces the common functions and operation methods of R4MIDI, hoping to help you understand and use R4MIDI more comprehensively.

At the same time, you are also welcome to visit the official website of HiBy Music (HiBy) www.hiby.com to learn more about HiBy Music (HiBy) products and purchase related products.

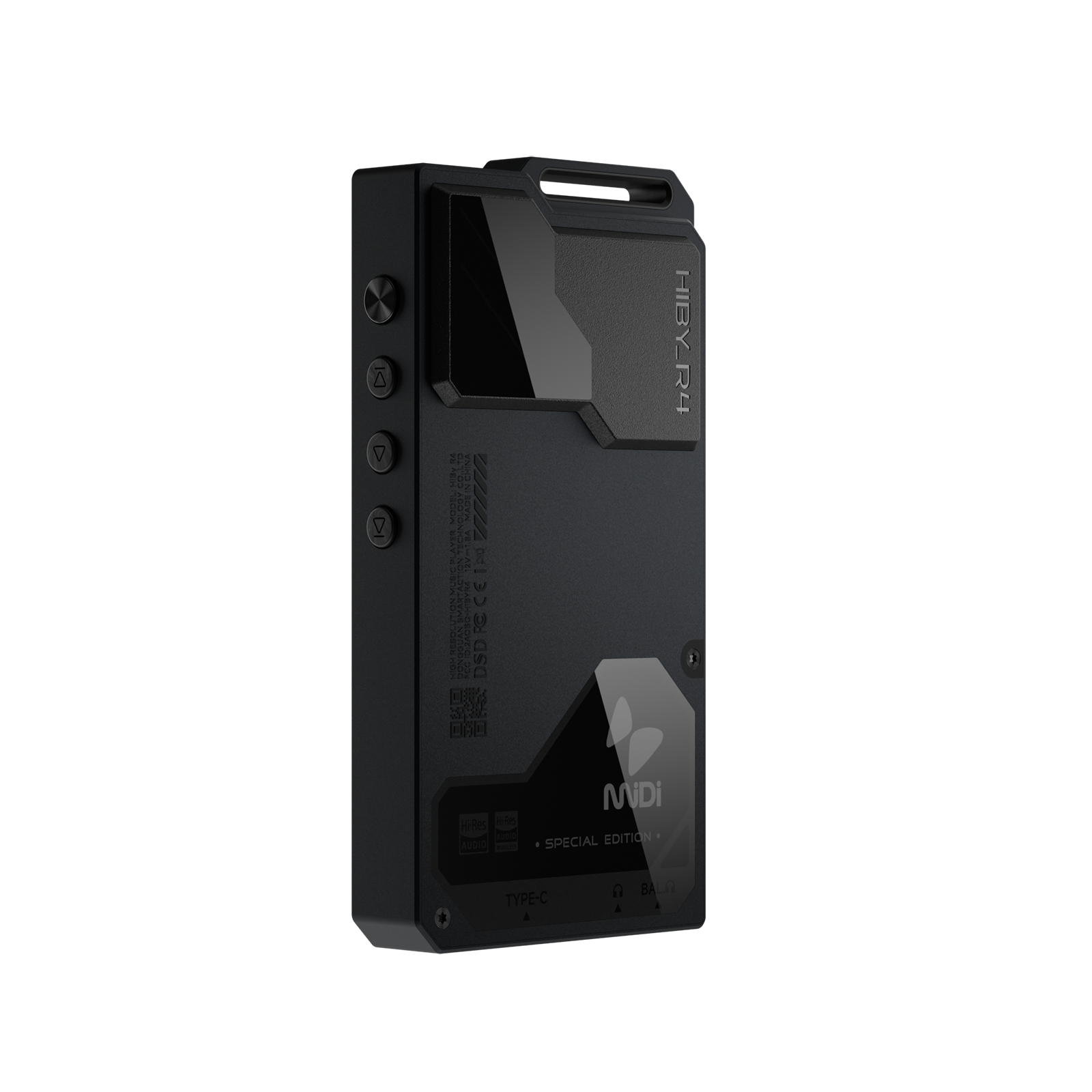

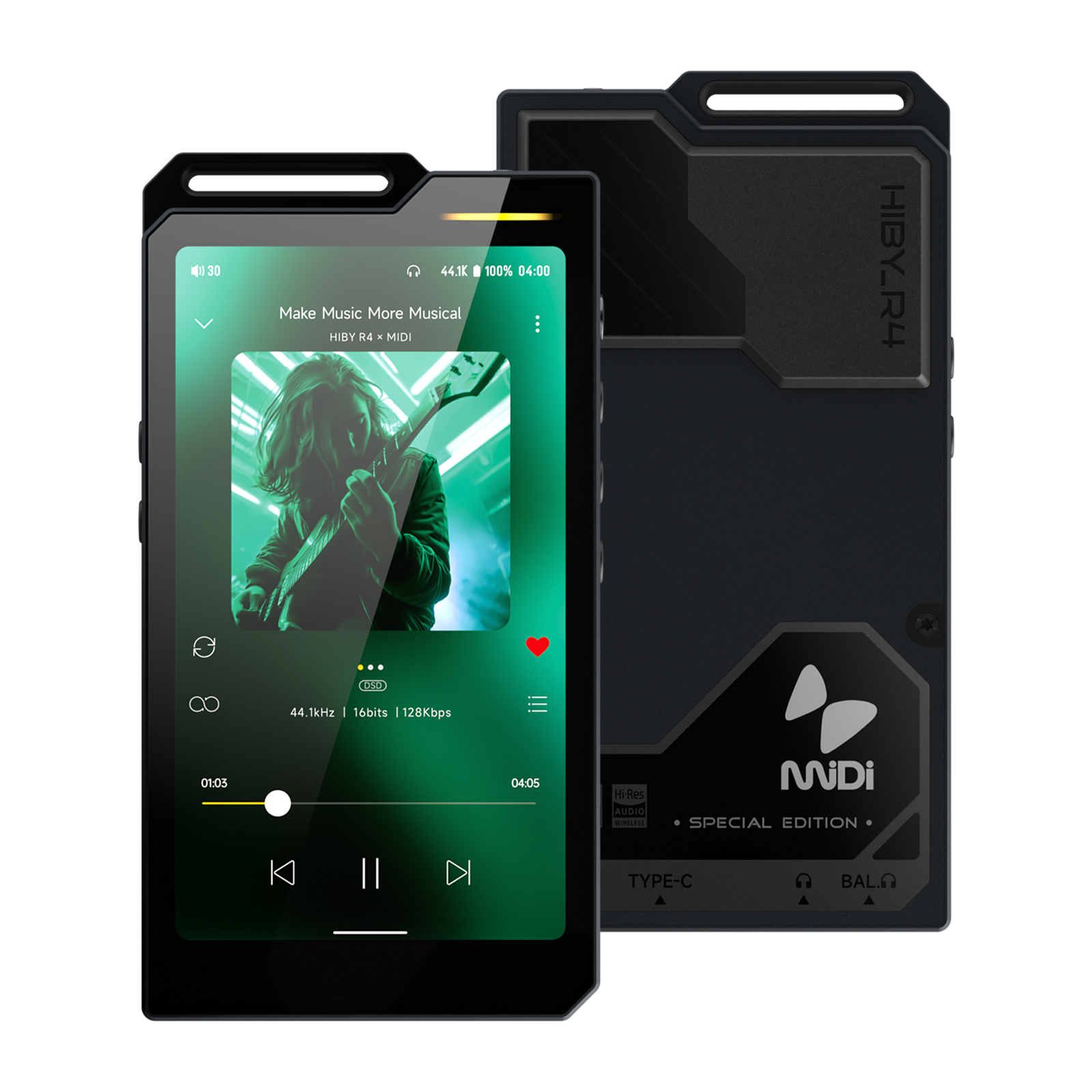

R4MIDI product map

1. Product introduction

R4MIDI is a portable HiFi high-definition lossless music player

1. Based on Android12 system, using Qualcomm Snapdragon 665 main control, with 4G running memory and 64GB internal storage
2. Adopts four ES9018C2M decoding architecture, supporting up to DSD256 and PCM 768kHz decoding
3. Support PhoneOut(PO), LineOut(LO), Balance and Balance LineOut analog audio output
4. Support coaxial (S/PDIF) output
5. Support Bluetooth audio output (support UAT, LDAC, aptX HD, aptX, AAC, SBC and other encodings)
6. Support USB audio output
7. Support MQA 16x expansion
8. Supports external MicroSD(TF) card up to 2TB
9. Supports Bluetooth 5.0 and 2.4G and 5G dual-band WiFi
10. Supports PD2.0 fast charging protocol, supporting up to 18W power charging
11. Support local playback, Bluetooth decoding, USB decoding, etc.

Appearance introduction

The following introduction is based on the front view of the player screen:

1. On the right side of the top is the lever (specific functions can be customized)
2. The upper right corner of the front screen is an LED indicator
3. From top to bottom, the right side is: power button, previous song, playback and pause, next song
4. From top to bottom on the left: MicroSD (TF) card slot, volume up, volume down
5. The bottom from left to right is: BAL, PO, Type-C
6. The upper right corner of the glass on the right side of the back is the ambient light

2. Button usage instructions

key distribution

The following introduction is based on the front view of the player screen:

1. On the right side of the top is the lever (specific functions can be customized)
2. From top to bottom, the right side is: power button, previous song, playback and pause, next song
3. From top to bottom on the left: MicroSD (TF) card slot, volume up, volume down

Button	Function
Power button	Long press: turn on and off the phone; short press: turn on and off the screen
Previous song	Short press: Previous song
Next song	Short press: Next song
Pause play	Short press: Pause play
Power button + next song	Press and hold simultaneously for more than 10s: hardware reset
Press and hold the previous song to boot	Used to enter recovery mode, see the detailed operation recovery 模式操作
Lever	Toggle switch

recovery mode operation

In recovery mode, you can clear system data and upgrade without entering the system.

1. Press and hold the previous song to turn on the phone, and a robot interface will be displayed.
2. In this interface, press and hold the power button and click to pause play and enter recovery mode.
3. The play pause button and next song button are used to make selections, and the power button is used to confirm.

3. Interface usage instructions

interface distribution

The following introduction is based on the front view of the player screen:

1. The bottom from left to right is: BAL, PO, Type-C

Audio output interface

audio output interface

The audio output interface can be used by different audio devices, such as: headphones with a 3.5mm interface, headphones with a 4.4mm balanced interface, lines with a 3.5mm interface, balanced input amplifiers with a 4.4mm interface, and other devices.

1. BAL: Headphone output of 4.4mm balanced interface
2. PO: 3.5mm single-ended interface headphone output (can be reused as LO)

USB interface

The physical interface used by the USB interface is the Type-C interface, through which the following functions can be provided.
The player allows USB to work in two different modes:USB OTG and USB 设备。

USB OTG

When the player acts as USB OTG When used (can be understood as USB on the computer):

1. Connect U disk or mobile hard disk: read data from U disk or mobile hard disk;
2. Connect USB decoder or USB tail: output high-definition audio data;
3. Connect to a wired network card: access the Internet through a wired network;

USB device

When the player acts as USB 设备 When using:

1. USB MTP (USB file management), for some questions about the use of USB MTP, please refer tohere 。
2. USB DAC (USB sound card), for some questions about the use of USB Audio, please refer tohere 。

Coaxial signal interface

coaxial signal interface

The physical interface used by the coaxial signal interface is the Type-C interface, and the protocol used for the transmitted audio signal is the S/PDIF interface protocol. High-standard audio digital signal output can be provided through this interface.

Charging interface

charging interface

The physical interface used by the charging interface is the Type-C interface, and charging can be achieved by connecting the charger through this interface.

1. Charging supports PD fast charging protocol. For PD fast charging, please use standard PD fast charging head and standard C2C cable.
2. Charging also supports ordinary charging heads, which can reach a maximum charging current of 5V@2A.

MicroSD(TF) card interface

MicroSD(TF) card interface

The MicroSD(TF) card interface is used to insert MicroSD(TF) cards, mainly to expand storage capacity. Hishell Player can support MicroSD (TF) cards up to 2TB, and the file systems supported by the player include FAT32\exFAT\NTFS.

LED indicator

Status	Color
Normal	Light Blue■
Normal charging	Red breathing effect (normal)■
Fast Charging	Red Breathing Effect (Quick)■
PCM(~48k)	Yellow■
PCM(88.2k~192k)	Cyan■
PCM(352.8k~)	Orange■
DSD	White■
MQA	Green■
MQA Studio	Blue■
MQA Core (MQB)	Magenta■

4. Start using

First boot

first boot

1. Press and hold the power button for 2 seconds, the player will enter the power-on state
   The first boot time will be longer.
2. After the boot animation is completed, the system enters the boot setting interface.
3. Select the corresponding language
4. Select the corresponding time zone
5. Complete setup
6. First boot completed

Navigation bar

The bottom of the screen is the system navigation bar, which has two modes. 手势导航 and “三按钮”导航, the default is 手势导航。
Users can perform quick operations on the navigation bar through 设置 -》系统 -》 手势 -》 系统导航 Users can switch navigation bar modes.

gesture navigation

1. Swipe up from the navigation bar: return to the desktop
2. Swipe and hover from the navigation bar: enter the task list
3. Swipe left or right on the navigation bar: quickly switch to the previous or next APP

"Three Button" Navigation

1. The middle button is the Home key: return to the desktop
2. The button on the right is the taskbar key: enter the task list
3. The button on the left is the return key: return
   NOTE: Changing the display size may cause the left and right button functions of "three-button" navigation to be swapped.

global gestures

global gesture

1. Swipe in from outside the left or right screen: Return
2. Three-finger swipe: screenshot
3. Double-click the screen: open the screen (this function is turned off by default and needs to be turned on) 设置 -》 系统 -》 手势 -》 双击唤醒）

Main interface

Introduces the related functions of the main interface and some common operations. The main interface contains the desktop and application list. You can enter the application list by swiping up on the desktop.

desktop

desktop

1. Status bar at the top
   For information about the status bar, please refer to the status bar information description below.

2. The middle is the desktop icon area
   The desktop area can be used to place items that require quick operations 应用图标、微件 wait
   Long press on a blank area of ​​the desktop to pop up home screen settings, widgets, wallpapers, etc.

3. The bottom is the resident shortcut operation 应用图标
   Mainly to place some preset high-frequency application shortcuts here to facilitate users to operate quickly.

4. Long press a blank area on the desktop to bring up 主屏幕设置、微件、壁纸

   • Home screen settings: You can set the icon style to蓝、绿、橙、原生
   • Widgets: You can add what you need微件
   • Wallpaper: You can modify the default wallpaper

Application list

application list

1. exist 桌面 Swipe up with one finger to enter the application list
2. Long press 应用图标 Can call up the menu
3. Long press 应用图标 and move, you can 应用图标 Add to desktop for quick operation

status bar

status bar

Some information in the status bar.

Left side of status bar

left side of status bar

1. volume value
   Displays the current volume value of the output port. A red volume value indicates that the current volume value is too high. Users need to be careful not to use it at high volumes for a long time, otherwise it may cause hearing damage.
   After pulling down the notification bar, click the volume value position to trigger the volume control UI. Under the volume UI, you can adjust the current output volume.

2. Other notification information Notification information sent by the application used by the user may be folded in the notification bar if there is not enough display space at the current location. The user needs to move down the status bar to release the notification bar.

Right side of status bar

right side of status bar

1. Hide other statuses
   Display content: a small dot.
   Indicates that the status bar has too many statuses to display all of them, and some statuses are hidden.

2. Output port status
   LineOut
   PhoneOut
   Balance
   Balance LineOut

3. Bluetooth status information
   Display Bluetooth information, including signal strength, connection status, etc.

4. WiFi status information
   Display WiFi information, including signal strength, connection status, etc.

5. Sampling rate information
   The displayed content is the final output sampling rate information.

6. Battery level information Displays battery icon, charging status, percentage and other information.
   Battery percentage switch: Settings -> Battery -> Battery percentage.

5. Play music

Import local music

Import music via USB

The player supports connecting to a computer via USB and then using the MTP protocol to transfer files. The following is a brief introduction. For more information on the use of MTP, please refer tohere 。
The following is MacOS and Windows Give a brief explanation:

MacOS

MacOS requires the installation of third-party drivers to use it. The following two methods are available:

app

• Open MTP:https://openmtp.ganeshrvel.com/
• Android official support:https://www.android.com/filetransfer/

Windows

Systems after Windows 7 already include the MTP driver and can be used directly.

MTP usage issues

You can try the following steps:

• Make sure the USB cable connection is normal
• After confirming that the USB cable is connected, pull down USB in the notification bar and select File Storage;
• Restart your computer and try again
• Restart the player and try again

Import music via MicroSD(TF) card

MicroSD(TF) card

Insert the MicroSD(TF) card into the MicroSD(TF) card slot of the player. The player supports three file formats: FAT32\exFAT\NTFS.

Play local music with Haibei Music

1. Open [Haibei Music]
2. If you have never scanned songs, it will be displayed as follows. At this time, click [Start Scan] to scan the songs and build a song library.

Scan songs

1. Just wait for the scan to complete and click on the song to play it.

For more instructions on using Haibei Music, please refer tohere。

Play streaming music with Haibei Music

1. Please make sure you are connected to the Internet
2. Open [Haibei Music]
3. Click the [Streaming Media] icon on the top menu, and click again to select different streaming media services, such as [Sony Selections] [HiFi Music], and [Tidal] [Qobuz] for other languages.

streaming media

1. Select [Sony Selection], there are free trial tracks at the bottom

Sony's selection of free songs

1. Select [HiFi Music] and then log in to the account. Users can listen to MP3 format tracks for free.

HiFi music songs

1. Select [Tidal] [Qobuz], you need to log in to the account of the corresponding platform, and then use the corresponding service

For more instructions on using Haibei Music, please refer tohere。

6. Settings

WiFi settings

Entrance: Settings -> WLAN -> Turn on WLAN -> it will automatically scan, and then select the corresponding WiFi network connection.

How to add a hidden network?

Enter Settings -> WLAN -> Add network -> Advanced options -> Hide network -> Set to "Yes"

Bluetooth settings

Entrance: Settings -> Bluetooth -> Turn on Bluetooth

USB

Entrance: Settings -> USB -> USB working mode

USB working mode

1. automatic mode
   It can automatically determine whether USB is working in USB OTG mode or device mode based on the inserted peripheral.
2. OTG mode
   Force USB to work in USB OTG mode.
   If the peripherals inserted by the user are: U disk, mobile hard disk, USB decoder, USB tail, USB network card and other devices, and the player fails to recognize them, the player can be forced to work in this mode.
3. device mode
   Force USB to work in USB device mode. If the user wants to connect the player to a computer or other host as a peripheral, but the computer or other host fails to recognize it, the player can be forced to work in this mode.

working mode

Entrance: Settings -> Working Mode

working mode

Used to change the player's working mode:

1. Android mode
   The default working mode of the player. In this mode, you can switch between different third-party software and download and install third-party software just like using an Android phone.

2. pure tone mode
   Using Hishell Music as the only front-end software, in this mode, users can eliminate other interference factors and listen to music more immersively.

3. USB DAC mode
   USB DAC mode uses the player as a USB decoder, and users can experience the sound of the player through USB connection.
   For specific usage, please clickhere。

4. Bluetooth receiving mode
   The Bluetooth receiving mode uses the player as a Bluetooth decoder. Through Bluetooth connection, it can accept Bluetooth music from different mobile phones and experience different sounds from the direct output of the mobile phone.
   For specific usage, please clickhere。

Audio settings

audio settings

1. Digital filter mode
   Different timbres can be achieved by selecting different digital filter types.

2. Lineout settings
   Select different modes of PO port: Phone Out, Line Out.

3. Gain
   Choose from different gain modes: options are Low, Middle, High, with each level varying by 6dB.

4. plug-in
   Choose a sound effect plug-in. Different plug-ins provide a different extended audio processing function.

5. MSEB
   Haibei's unique sound effect setting function provides a more visual description to allow customers to adjust different timbres more intuitively.

6. PEQ
   The sound effect setting function for more professional users provides more professional sound effect settings, so that customers can adjust the sound to their own needs in a wider range and more independently.

7. DSD gain compensation
   Since DSD tracks may have a certain attenuation compared to PCM tracks, you can use this to compensate for DSD tracks.

8. channel balance
   Adjust the volume difference between the left and right channels.
   There are differences between the left and right channels of some devices or there are differences between the left and right hearing of some users, which can be adjusted through this.

9. maximum volume
   Limit the maximum adjustable volume range to avoid volume changes caused by misoperation.

10. MQA decoding
    Because MQA information is encoded in the audio stream, it may cause a delay in identifying MQA information. If the user feels that the MQA audio support for third-party applications is not good (such as Tidal), the MQA decoding function can be turned off.

11. Spdif digital volume lock
    Lock the Spdif digital signal amplitude. For Spdif decoders that do not support volume adjustment, after unlocking the lock, the volume adjustment function can be realized.

12. USB digital volume lock
    Lock the USB audio digital signal amplitude. For USB decoders that do not support volume adjustment, after unlocking the lock, the volume adjustment function can be realized.

display settings

Entrance: Settings -> Display Settings

display settings

Used to change the display-related settings of the player:

1. Reset desktop wallpaper
   Used to quickly restore the desktop wallpaper modified by the user to the factory state.

2. Automatically rotate screen
   According to the direction detected by the sensor, the direction of the display is adjusted and whether it is horizontal or vertical.

3. Lock vertical flip
   The fixed display direction is flipped up and down, making it easier for users to connect headphones or USB interfaces from the top.

4. Turn on the power light
   Power indicator switch, used to turn the indicator light on or off.

5. Ambient light
   Ambient light switch, used to turn on or off the ambient light.

6. Seashell volume pop-up window
   HiBi volume pop-up window switch is used to open and close HiBi's customized volume pop-up window. When closed, the native Android volume pop-up window is used.

Battery settings

Entrance: Settings -> Battery

battery

Used to change battery and power management related settings of the player:

1. Maximum charging capacity
   It is used to limit the maximum charging percentage of the battery. It can only be used for power-on charging, and does not take effect during power-off charging.

2. battery percentage
   Used to switch whether to limit the battery power percentage in the notification bar.

3. Idle shutdown
   After turning it on, the device will automatically shut down if there is no operation after the set time to save power.

4. Scheduled shutdown
   After being turned on, the device will automatically shut down after the set time is reached regardless of whether there is any operation to save power.

7. Pre-installed applications

This article introduces some related applications pre-installed in HiBy Player and the functions of these applications. Currently, uninstallation of pre-installed applications is not supported, but some applications can be closed and run.

Pre-installed application

1. seashell music
   The player software provided by Haibei, you can check the detailed operation guide.here。

2. HiByCast Server
   LAN same-screen control software provided by Haibei. You can check the detailed operation guide.here。
   [How to turn off running] Settings -> Applications -> HiByCast

3. cool
   In domestic application markets with relatively few advertisements, you can download the third-party applications you need in the market.
   [How to turn off running] Settings -> Applications -> Coolan App Market

4. Google Play
   Google App Market allows you to download required third-party applications from the market. [How to turn off running] Settings -> Applications -> Google App Market

5. Via
   An ultra-lightweight browser that allows you to browse the web. Similar types of applications include: Chrome, Edge, etc.;

8. USB DAC mode

USB DAC Mode Guide

USB DAC mode description

When the player works in USB DAC mode, the player can be regarded as a USB HD decoding receiver or as a USB sound card.
The player working in USB DAC mode supports the USB Audio Class 2.0 (UAC2) protocol, but does not support USB Audio Class 1.0 (UAC1), so the host needs to also support USB Audio Class 2.0 (UAC2).

How to enter USB DAC mode

1. From the top of the player, pull down the notification bar, select [Working Mode], and then select [USB DAC Mode].

2. Enter [Settings]->[Working Mode]->Select [USB DAC Mode] from the desktop icon.

Different host systems will have different power supply, so the USB DAC provides two working modes:

USB DAC working mode

1. USB DAC mode (charging)
   After selecting this mode, the current provided by the host is not only used to operate the player, but also charges the player. Therefore, it is recommended to select this mode in scenarios where the host power supply current is large, such as when the host is a computer.

2. USB DAC mode (not charging)
   After selecting this mode, the current provided by the host is only used for the player's operation. Therefore, it is recommended to choose this mode when the host power supply current is small, for example, when the host is a mobile phone, select this mode.

Different host systems have certain differences in their support for USB Audio Class 2.0 (UAC2). Please confirm the support status according to the corresponding system. For details, please jumphere, the following provides a brief reference:

Support status of different hosts

1. Windows
   Windows (Win7/Win8/Win10 versions before 1703) does not support the USB Audio Class 2.0 (UAC2) protocol, so you need to install the driver to use it. For driver installation, please refer tohere。
   Windows (Win10 1703 or later) begins to support the USB Audio Class 2.0 (UAC2) protocol, plug and play.
   When the computer is powered by an external power supply, it is recommended to use the USB DAC mode (charging).
   When the computer is powered by battery, it is recommended to use USB DAC mode (without charging).

2. MacOS
   MacOS itself already comes with a driver. You can use it by connecting the player to a MacOS computer via a USB cable.
   When the computer is powered by an external power supply, it is recommended to use the USB DAC mode (charging).
   When the computer is powered by battery, it is recommended to use USB DAC mode (without charging).

3. Linux distribution
   Linux's support for USB DAC is determined by the kernel. Whether the kernel of different distributions turns on the USB sound card function is uncertain. For Linux distributions that do not support USB DAC, you can compile the kernel yourself to implement the USB sound card function. Or find a third-party application to support USB DAC function.
   When the computer is powered by an external power supply, it is recommended to use the USB DAC mode (charging).
   When the computer is powered by battery, it is recommended to use USB DAC mode (without charging).

4. Android
   The Android side distinguishes between exclusive methods and non-exclusive methods.

   Android non-exclusive use
   Simply plug the USB decoder (such as HiBy FC4/HiBy FC6) into the USB port of your phone. If there is no response after plugging it in, you can download HiBy Music and try the exclusive mode of HiBy Music. Otherwise, the phone does not support it. Please contact the phone manufacturer for confirmation.

   Android exclusive use
   Download and install HiByMusic. Enter HiBy Music -> Swipe right to open the settings option -> Settings -> Click on HiBy Music exclusive USB output and open the exclusive output. Insert the USB decoder (such as HiBy FC4/HiBy FC6) directly into the phone. The phone will pop up "Allow HiBy Music to use HiBy FC4", click Allow.

   It is recommended to use USB DAC mode (without charging) to save power on your mobile phone or tablet.

5. iOS
   iOS itself already comes with a driver, and you can use it by connecting the player to your iPhone/iPad via a USB cable.
   It is recommended to use USB DAC mode (without charging) to save power on your mobile phone or tablet.

6. game console
   So far, game consoles such as XBOX/PS/Switch only support USB Audio Class 1.0 (UAC1), so the player's USB DAC function cannot be used through the game console.

9. Bluetooth receiving mode

Bluetooth receiving mode guide

Bluetooth receiving mode description

When the player is working in Bluetooth receiving mode, the player can be regarded as a Bluetooth high-definition decoding receiver or as a Bluetooth headset (after connecting the headset).
The player supports codecs such as LDAC/AAC/SBC, so the host must also support codecs such as LDAC/AAC/SBC.
Android phones generally support LDAC/AAC/SBC encoders, while iPhone currently only supports AAC/SBC encoders.

How to enter Bluetooth receiving mode

1. From the top of the player, go down from the notification bar, select working mode, and then select Bluetooth receiving mode.
2. Enter from desktop icon设置 -》工作模式 -》蓝牙接收模式。

How to connect to Bluetooth receiving mode

1. When switching to Bluetooth receiving mode, the player will automatically enter the pairing state, and when it subsequently enters Bluetooth receiving mode again, it will automatically connect back to the last connected device;
2. Turn on Bluetooth on the mobile phone and connect to the searched player device;
3. Play songs on mobile phone;

What to do if you cannot connect to Bluetooth receiving mode

1. Exit Bluetooth receiving mode, enter Bluetooth settings, and delete the Bluetooth pairing of the corresponding mobile phone.
2. Enter the Bluetooth settings on the mobile phone and delete the Bluetooth pairing of the corresponding player.

10. Frequently Asked Questions

• Frequently asked questions can go hereCheck
