HiBy RS2 User Manual

Welcome to use HiBy's products

Thank you for purchasing the portable high-definition lossless music player RS2, launched by HiBy. In order to make RS2 give you a better experience, this article introduces the common functions and operating methods of RS2, hoping to help you understand and use RS2 more comprehensively.

At the same time, you are also welcome to log in to the official website of HiBy at https://store.hiby.com/ to learn more about HiBy product information and purchase related products.

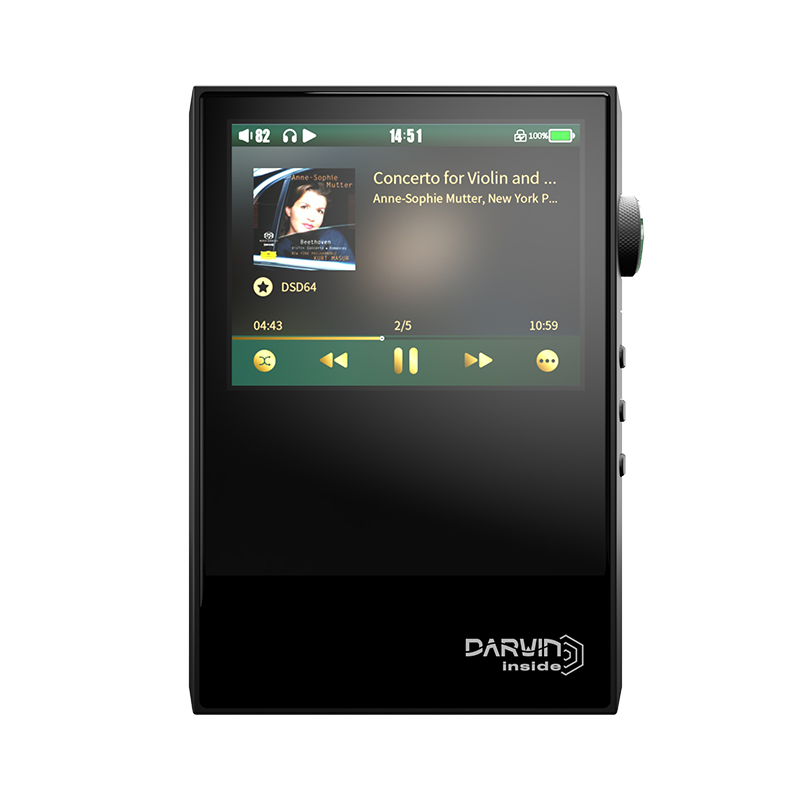

RS2 product diagram

1. Product introduction

RS2 is a portable HiFi HD lossless music player

1. Based on HiBy OS (Linux 3.10.14) system, the Junzheng X1000E main control is adopted
2. Adopt Darwin decoding architecture, with up to support DSD256\PCM384kHz decoding
3. Supports analog outputs such as 4.4mm Balance, 3.5mm PhoneOut(PO) and other analog outputs
4. Supports coaxial (S/PDIF) output
5. Supports Bluetooth audio output (supports UAT, LDAC, aptX, AAC, SBC, etc. encoding)
6. Supports USB audio output
7. Supports external MicroSD(TF) cards up to 2TB
8. Supports Bluetooth 5.0 and 2.4G WiFi
9. Support local playback, AirPlay, DLNA, network radio, etc.
10. Supports inputs such as Bluetooth, USB Audio, etc.

appearance introduction

The following introduction is the front view of the player screen as reference:

1. The top is from left to right: BAL, PO, LO, and lever power buttons
2. From top to bottom on the right are: volume knob, LED indicator, previous song, playback pause, next song
3. The bottom is from left to right: MicroSD(TF) card slot 1, Type-C, MicroSD(TF) card slot 2

2. Button usage instructions

Button distribution

The following introduction is the front view of the player screen as reference:

1. The top is from left to right: BAL, PO, LO, and lever power buttons
2. From top to bottom on the right are: volume knob, LED indicator, previous song, playback pause, next song

Button	Function
Rod Power Key	Turn Right: Short dial: Turn on and off; Long dial for 10 seconds or more: Hardware reset
Rod Power Key	Toggle left: Turn off charging, convenient for quick USB decoder operation
Volume Knob	Increase Volume\Down Volume
Previous song	Short note: Previous song
Play Pause	Short button: Play Pause
Next song	Short button: Next song
Press and hold the previous song to turn on	Used to enter the burn mode, mainly for production
Press and hold the volume to turn on the power	Use it to force the upgrade mode, see the specific operationupgrade mode

[upgrade mode]

1. Make sure there is a MicroSD(TF) card inserted
2. Make sure there is an upt file for upgrade in the inserted MicroSD(TF) card
3. The system detects the upgrade file and will automatically upgrade it.
4. If the above configuration is not available, you need to force exit the upgrade mode, turn the power button to restart the device for 10s

3. Interface usage instructions

Interface Distribution

The following introduction is the front view of the player screen as reference:

1. The top is from left to right: BAL, PO, LO, and lever power buttons
2. The bottom is from left to right: MicroSD(TF) card slot 1, Type-C, MicroSD(TF) card slot 2

Audio output interface

audio output interface

The audio output interface can be provided to different audio devices for use, such as headphones with 3.5mm interface, etc.

1. LO: 3.5mm single-ended headphone output
2. PO: 3.5mm single-ended interface headphone output
3. BAL: 4.4mm balanced interface headphone output

USB port

The physical interface used by the USB interface is the Type-C interface, through which the following functions can be provided. The player allows USB to work in two different modes:USB OTGandUSB Device。

USB OTG

When the player asUSB OTGWhen using it (can be understood as USB on the computer):

1. Connecting a USB or mobile hard drive: Read data from a USB or mobile hard drive;
2. Connect to a USB decoder or USB small tail: output high-definition audio data;

USB device

When the player asUSB DeviceWhen using:

1. USB MassStorage (USB file management), some questions about the use of USB MassStorage can be foundHere 。
2. USB audio, some questions about USB audio usage can be foundHere 。

Charging interface

charging interface

The physical interface used by the charging interface is the Type-C interface, through which the charger can be connected to the charger.

1. Charging supports ordinary charging heads, which can reach a charging current of 5V@1A.

MicroSD(TF) card interface

MicroSD(TF) card interface

The MicroSD(TF) card interface is used to insert a MicroSD(TF) card, mainly to expand storage capacity. The HiBy player can support MicroSD(TF) cards up to 2TB, and the player supports file systems including FAT32\exFAT\NTFS.

LED Indicator

Status	Color
Normal	Red ■
Charging	Red breathing effect (normal)■
PCM(~48k)	Yellow■
PCM(88.2k~192k)	Cyan■
PCM(352.8k~)	Orange■
DSD	White ■
MQA	Green■
MQA Studio	Blue■
MQA Core (MQB)	Magenta■

4. Get started

Get Started

Since the player does not have storage itself, the user needs to prepare a MicroSD(TF) card, or you can purchase a package product with a MicroSD(TF) card.

First boot

first boot

1. Press and hold the boot key for 2s, and the player enters the boot state
2. After the startup animation is completed, the system enters the boot settings interface
3. Select the corresponding language
4. Complete the setup
5. The first startup is completed

Status bar

status bar

At the top is some information in the status bar, showing some common system information.

1. Volume value Display the volume value of the current output port. The volume value in red indicates that the current volume value is too high. Users need to be careful not to use it for a long time at high volume, otherwise it may cause hearing loss.

2. Output port status LineOut PhoneOut Balance

3. Play status If it is currently in playback, the playback status or the pause status will be displayed, otherwise it will not be displayed.

4. time Show current time

5. Battery level information Displays battery icon, charging status, percentage and other information. Power percentage switch: Settings -》 Battery -》 Battery percentage.

Main interface

Introduce the relevant functions of the main interface and some common operations. The main interface contains a series of entrances to quickly use related functions.

gesture operation

1. Swipe left Quickly enter the playback interface.

2. Swipe down from outside the screen Enter the quick operation interface.

main interface

1. music
2. Darwin
3. MSEB
4. Playback settings
5. System
6. about

Quick operation

gesture operation

1. Pull down from outside the screen to enter the quick operation interface.
2. Follow the following operations: System -》 Shortcut menu, you can enter the shortcut menu setting interface
   • Modify quick operation pull-up trigger and pull-down trigger
   • Modify the default operation of the quick operation and place the quick operation that is more suitable for you in this position

Operation introduction

The following shortcut buttons are included by default: Off, NOS, Output Selection, Gain Settings, Sleep Shutdown, and the currently playing song name and media buttons. You can use the following operations: System -》 Shortcut menu, you can enter the shortcut menu settings, and then replace the shortcut action with the shortcut action supported by other systems.

1. Close the screen Click the screen off icon to turn off the screen directly

2. US Click the NOS icon, shortcut switch NOS

3. Output selection Click the [Output Selection] icon to switch PO/LO

4. Gain settings Click the gain icon to adjust the gain.

5. Sleep shutdown Click the Sleep Shutdown icon toggle on and off, and start countdown synchronously. If you need to set different times of sleep shutdown, you need to enter the System -> Sleep shutdown adjustment.

5. Music

Music interface

1. The tops are: Return to the previous interface, music search, collection classification
2. Click the corresponding icon to enter the corresponding function.
3. The music module includes a list entry according to all songs, folders, albums, singers, styles, album singers, etc.;

Import local music

[Import local music]

Since the player itself does not have storage, the user needs to prepare a MicroSD(TF) card, or you can purchase a package product with a MicroSD(TF) card.

Import music via MicroSD(TF) card

MicroSD(TF) card

Insert the MicroSD(TF) card containing the song into the player's MicroSD(TF) card slot. The player supports FAT32\exFAT\NTFS and other file formats.

Import music via USB

The player supports connecting to the computer via USB and then using the MassStorage protocol to transfer files. Here is a brief introduction. For more information about the use of MassStorage, please refer toHere 。
The following isMacOSandWindowsMake a brief description:

MacOS

MacOS supports FAT and exFAT, but does not support NTFS. Therefore, if you are using a NTFS file system, you need to install a third-party driver to use it. The following two methods are available:

app

• Paragon：https://www.paragon-software.com/home/ntfs-mac//
• Western Data:https://support-eu.wd.com/app/answers/detailweb/a_id/34871/~/external-drive%3A-paragon-ntfs-driver-for-mac

MacOS

If you are a MacOS user, it is recommended that you back up your disk files and format the disk to exFAT for use, which can provide a better file compatibility experience.

MassStorage usage problem

You can try it as follows:

• Make sure the USB cable connection is normal
• After confirming that the USB cable is connected, make sure that USB is currently using the USB storage protocol;
• Restart the computer and try again
• Restart the player and try again

Playback interface

Swipe the entire interface to the right to exit the playback interface and return to the song list interface or the main interface.

play operation

1. The cover and lyrics interface are displayed in the middle, and you can switch the lyrics display after clicking;
2. The star button on the left in the middle can be added to my favorite list after clicking;
3. The bottom progress bar is used to display the playback progress, and can quickly jump the current song progress;
4. The bottom buttons are the play mode, previous song, play/pause, next song, function menu and other functions;
5. Play mode button function:
   • List playback: Start from the selected track until the current list playback is completed and playback stops;
   • Single loop: The same song is repeated until it is manually cut or shut down, and the playback is stopped;
   • Shuffle: Randomly select the next song in the current list to start playing until it stops manually or shuts down, and stops playing;
   • List loop: Starting from the selected track, continuously looping the songs in the current list until they are manually stopped or shut down, and the playback is stopped;
6. Function Menu Button Function:
   • Current playlist
   • Add to song list
   • Jump to Equalizer
   • View album
   • View song details
   • delete

album cover

• Supported formats are: png, jpg, jpeg, bmp
• Supports resolution, in principle, no more than 1024*1024 (unit pixels)
• Supports embedded song covers
• Support external covers
• Priority: Pictures with the same name as the song file > Pictures with the file name folder > Pictures with the file name cover > Pictures with the file name front > Pictures with the song built-in.

lyrics

Click the upper half of the screen to switch to the lyrics display

• Lyrics only support lrc format
• The lyrics should be in the same directory as the song
• The lyrics file name should be the same as the song file name
• Support embedded lyrics
• Lyrics encoding format supports UTF-8, UTF-16 and other encodings
• For locally encoded lyrics, there will be compatibility issues. You can try to switch the same machine language as the lyrics encoding.

6. Darwin

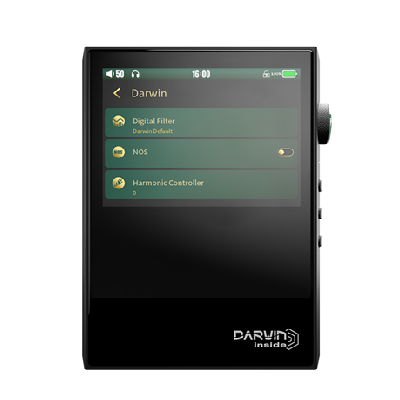

1. What is Darwin? Darwin architecture is a new high-definition audio processing architecture independently developed by HiBy. It is derived from traditional R2R technology and integrates R2R resistor network linear technology. It pioneered the application of adjustable pure FIR filters, harmonic controllers, NOS/OS switching, DSD pass-through and other functions on portable playback devices. At the same time, its flexible architecture design is independent and controllable throughout the entire process, which also creates infinite possibilities for later upgrades and iterations, allowing the equipment using it to have the imagination space for continuous evolution.

2. Digital filter mode Used to select different digital filters to provide different listening experiences.

3. US

   • Non OverSampling is a method for digital-to-analog conversion in which an audio signal is converted directly from its digital form to an analog signal without going through an oversampling process. To fully understand NOS, you must first master the basic concepts of digital-to-analog conversion and oversampling.
   • In digital-to-analog conversion (DAC), a digital audio signal composed of discrete samples is converted into a continuous analog signal that can be amplified and played through a speaker or headphone. This process is essential for converting digital audio data into sounds that can be heard and appreciated.
   • On the other hand, oversampling involves increasing the sampling rate of the audio signal beyond the original sampling rate. The technique is designed to reduce distortion and noise by averaging multiple samples, which theoretically improves the quality of the conversion. Oversampling is often used in modern DACs for improved performance and accuracy.
   • NOS DAC skipped this extra step. These DACs do not perform oversampling, but convert at the original sample rate of the audio signal. This approach can lead to different audio experiences, often characterized by its unique sound quality.

4. Harmonic controller

   • The main adjustment of the harmonic controller is the second harmonic, because generally speaking, the human ear prefers even harmonics because compared with even harmonics, odd harmonics are more harsh and discordant in the hearing.

7. MSEB

The top areas are reset MSEB, MSEB setting entry, and MSEB switch respectively

• Swipe up and down to show more adjustments
• Slide left and right to adjust the settings of corresponding items
• MSEB is only valid for songs not higher than 96kHz
• Invalid for DSD and MQA songs

8. Playback settings

Play Settings

1. EQ (EQ) The top areas are reset equalizers, select the preset equalizer menu entry, and equalizer switch

   • By sliding left and right, different equalizer bands are displayed
   • Slide up and down the slider of different frequency bands to adjust the gain/attenuation dB value of the corresponding frequency bands
   • Draw the corresponding curve according to the position adjusted by different frequency bands
   • Equalizer is only valid for songs not higher than 48kHz
   • Invalid for DSD and MQA songs

2. Update database Start scanning songs manually

3. Music update mode

   • Manually, the user needs to manually update the song library
   • Automatically, if the MicroSD(TF) card is detected or the USB is plugged in, the system will automatically rescan the song library.

4. Playback mode

   • List playback: Starts from the selected track until the current list playback is completed and plays stop.
   • Single loop: The same song is repeated until it is manually cut or shut down and the playback stops.
   • Shuffle: Randomly select the next song in the current list to start playing until it stops manually or shuts down, and stops playback.
   • List loop: Starting from the selected track, continuously looping the songs in the current list until they are manually stopped or shut down, and the playback is stopped.

5. Output selection

   • Since PO/LO multiplexes the same output port, this option is used to switch PO/LO outputs

6. DSD output mode

   • When the audio output is balanced (BAL)\single-ended (PO)\LineOut(LO), the DSD output mode selection cannot be performed. This function is invalid and output according to the actual situation;
   • When the audio output is Bluetooth, DSD output mode cannot be selected. This function is invalid and is converted to PCM output;
   • When the audio output is SPDIF, DSD output mode selection can be performed Select PCM and output according to the sampling rate 88.2kHz Select DoP or Native. When playing DSD64, it will be output in DoP mode, and the output sampling rate is 2.8 MHz; Select DoP or Native. When playing DSD128 and DSD256, they are converted to PCM output, with an output sampling rate of 88.2 kHz.
   • When the audio output is USB Audio Out, DSD output mode selection can be performed Select PCM, press PCM to output, the maximum support sampling rate is 384kHz Select DoP, press DoP to output, and support DSD256 (11.2MHz) at most (condition: The decoding device that needs to be accessed supports DSD decoding. If the device does not support it, the playback fails) Select Native, press Native to output, and support DSD256 (11.2MHz) at most (condition: The decoding and decoding device that needs to be accessed supports DSD decoding. If the device does not support it, the playback fails)

7. DSD Gain Compensation Since DSD audio is lower than PCM, you can adjust certain compensations yourself as needed to keep DSD and PCM at the same output level.

8. Power-off memory playback After turning on, shut down the power while playing. After the next time the next time the song played will be automatically recorded and the automatic playback will continue.

9. Gapless playback The two songs are seamlessly connected.

10. Maximum digital volume output When setting digital output (S/PDIF\USB Audio Out\Bluetooth Audio Output), limit the maximum value of digital volume.

11. Maximum volume limit When setting the local output port output (single-ended and balanced output), limit the maximum output volume.

12. Default volume on power Sets the volume of the local output (single-ended and balanced output) outputs each time it is powered on.

13. Fade in and out When the song starts and stops playing, the sound goes from small to normal, or from normal to none.

14. Gain settings Sets the player's high and low gain.

15. ReplayGain This option is valid if the song's information contains ReplayGain information. If you select the audio track or album ReplayGain, each song or album will be adjusted according to the ReplayGain parameters of the song, so that the actual volume of different songs is maintained at the same level without changing the system volume.

    • Close: Ignore ReplayGain information in the song
    • Audio track: Make gain adjustments according to the ReplayGain information of the audio track in the song
    • Album: Make gain adjustments according to the ReplayGain information of the album in the song

16. Balance Set the volume of left and right channels.

17. Play through folders

    • Play through folderss can prevent users from listening to repeated catalog songs all the time;
    • The song playback ends. If the song is the last song in the current directory list, the previous directory will be returned to the previous level directory when cutting the song. If the parent directory has another directory, it will enter the next directory of the current directory and play it according to the list. Otherwise, continue to look for the next directory in the parent directory;
    • How to find other directories or songs, continue to return to the previous directory and repeat the process until the last song in the root directory is found;
    • The folder jump function can be performed by list playback, random playback, and sequential playback. When the folder jumps, the playback mode logic is invalid;
    • When the playback mode is a single loop and automatically cuts the song, the function is invalid;

18. Play through albums

    • When the album list is played, after one album is played, it will jump to another album to play;
    • When the playback mode is a single loop and the song is automatically cut, the function is invalid;

19. Automatically slide to playlist

    • After turning on the switch, click on the song in the list and you will directly enter the playlist interface.

9. System

System

1. Language Select the current system language as needed.

2. Backlight brightness Set different backlight brightness.

3. Backlight time Sets the time to automatically turn off the backlight.

4. Theme color After opening, you can select a different color to serve as the main color of the device.

5. Font size Set the font size. If you feel that the current font is not suitable, you can select different font size options to adapt to your needs.

6. USB mode This option can be used to switch functions when using the player as a USB device.

   • Storage: You can use the player as a USB drive. For some questions about using USB MassStorage, please refer toHere 。
   • Audio: You can use the player as a USB sound card. For some questions about using USB Audio, please refer toHere 。

7. USB DAC feedback If the connected device is unavailable, you can try to modify this option.

8. Time settings Modify the current player time.

9. Power saving shutdown After turning on the switch, the player is in an unplayed state, there is no audio data transmission on HiByLink, Bluetooth and Wi-Fi, and the USB is not connected, saving power-saving shutdown time to save power.

10. Sleep shutdown

    • After turning on the switch, after the sleep time has come, if the USB is not inserted, the power will be shut down unconditionally. If the USB is inserted, the charging interface will be entered.
    • This function is effective at one time. After the next time you turn on the computer, the sleep shutdown function will fail and you need to turn on the switch again.

11. Power percentage display After setting, the battery percentage will be displayed next to the battery icon.

12. Standby Used to turn on the automatic standby function.

13. LED indicators

    • The LED indicators switch can be turned off at night to avoid light pollution.
    • When charging, breathe on the red light.
    • When not charging, the blue light indicates work.

14. Double-click to wake up It is used to support double-clicking the screen to wake up. If there are too many errors, please turn off this function.

15. Button operation when screen off Whether it supports operation when closing the screen, avoid misoperation caused by placing it in your pocket or other places.

16. Volume knob operation when the screen is turned off Whether it supports operation when closing the screen, avoid misoperation caused by placing it in your pocket or other places.

17. Shortcut menu Set the shortcut menu function.

18. Screensaver settings

    • Set the display mode of the screensaver, you can choose to close, album cover, and dynamic cover.
    • Album cover: Shows the currently playing song cover.
    • Dynamic Cover: Create a new one under the root directory of Micro SD(TF)screensaversFolder and place the pictures in this directory. Support jpg, png and other formats Recommended resolution not exceeding 1024*1024 It is recommended that the number of pictures should not exceed 16

19. Screen rotation Can support 180 rotating the screen to display.

20. Restore factory settings Restore factory settings.

21. Firmware update

    • TF card upgrade Will download*.uptCopy the upgrade package to the Micro SD (TF) card root directory and select TF card upgrade.

    • Network upgrade After clicking, the system will automatically detect whether the server has the latest firmware, and then follow the prompts to operate.

    • How to upgrade the player if it cannot be turned on?

      • Through a card reader or other device that can read the card, the download will be*.uptCopy the upgrade package to the Micro SD (TF) card root directory.
      • When the power is turned off, press the play pause key and the power start button at the same time. When the system is powered on, it will automatically enter the upgrade mode.

10. About

about

1. brand Showcase the HiBy brand logo.

2. Model, firmware version Displays player version information.

3. Storage capacity Displays current storage capacity information, including used capacity and total capacity.

4. Additional Information The product supports contact information, official website, serial number and other platform contact information. Click to pop up the QR code and you can scan the code directly.

5. Firmware compilation time Displays the compile time of the current firmware.

11. USB audio

USB Audio Guide

USB audio description

When the player works on USB audio, you can think of the player as a USB HD decoding receiver or as a USB sound card. The player works on USB audio supports the USB Audio Class 2.0 (UAC2) protocol, but does not support USB Audio Class 1.0 (UAC1), so the host side also needs to support USB Audio Class 2.0 (UAC2).

Different host systems will have different power supply, so USB DACs offer two working modes:

USB DAC working mode

1. USB charging (the lever toggle remains in the middle) After selecting this mode, the current provided by the host is not only used to work and use the player, but also to charge the player. Therefore, it is recommended to choose this mode in scenarios where the host power supply current is large, such as when the host is a computer.

2. USB does not charge (the lever is to be locked to charge state) After selecting this mode, the current provided by the host is only used to work for the player. Therefore, it is recommended to select this mode in scenarios where the host power supply current is small. For example, when the host is a mobile phone, select this mode.

There are certain differences in the support of USB Audio Class 2.0 (UAC2) for different host systems. Please confirm the support according to the corresponding system. Please jump to the details.Here, the following provides a brief reference:

Support situation of different hosts

1. Windows Windows (Win7/Win8/Win10 1703 previous version) does not support the USB Audio Class 2.0 (UAC2) protocol, so drivers are required to be installed to use. Please refer to the driver installation.Here。
   Windows (Win10 1703 later) begins to support USB Audio Class 2.0 (UAC2) protocol, plug and play. When the computer uses an external power supply, it is recommended to use USB DAC mode (charging). When the computer is powered by a battery, it is recommended to use USB DAC mode (not charged).

2. MacOS MacOS itself already comes with a driver, and you can connect the player to the MacOS computer via a USB cable. When the computer uses an external power supply, it is recommended to use USB DAC mode (charging). When the computer is powered by a battery, it is recommended to use USB DAC mode (not charged).

3. Linux distribution Linux's USB DAC support is determined by the kernel. Whether the kernel of different distributions is turned on USB sound card functions is uncertain. For Linux distributions of unsupported USB DACs, you can compile the kernel to implement USB sound card functions by yourself. Or find a third-party app to support USB DAC functionality. When the computer uses an external power supply, it is recommended to use USB DAC mode (charging). When the computer is powered by a battery, it is recommended to use USB DAC mode (not charged).

4. Android The Android side distinguishes between exclusive and non-exclusive methods.

Android non-exclusive Just plug the USB decoder (such as HiBy FC4/HiBy FC6) into the USB port of your phone and use it. If you insert it, you can download HiBy Music and try the exclusive mode of HiBy Music. Otherwise, the phone will not support it. Please contact the mobile phone manufacturer to confirm.

Exclusive Android use Download, install HiByMusic. Enter HiByMusic. Swipe right to open the settings options -> Settings -> Click HiByMusic exclusive USB output, open the exclusive output. Insert the USB decoder (such as HiBy FC4/HiBy FC6) directly into the phone. The phone will pop up "Allow SeaByMusic to access HiBy FC4" and click Allow.

It is recommended to use USB without charging, saving battery power of your phone or tablet.

5. iOS iOS itself already comes with a driver, and you can connect the player to iPhone/iPad via a USB cable. It is recommended to use USB without charging, saving battery power of your phone or tablet.

6. Game console So far, XBOX/PS/Switch and other game consoles only support USB Audio Class 1.0 (UAC1), so the player's USB audio function cannot be used through the game console.

12. Frequently Asked Questions

• FAQs can be foundHere
