HiBy RS8II User Manual

Welcome to HiBy Music's products

Thank you for purchasing the portable high-resolution lossless music player RS8II from HiBy Music. To help RS8II provide you with a better experience, this manual introduces the common features and operation methods of the RS8, hoping to help you gain a more comprehensive understanding and use of the RS8II.

At the same time, you are also welcome to visit the official HiBy Music website at www.hiby.com to learn more about HiBy Music products and purchase related products.

1. Product introduction

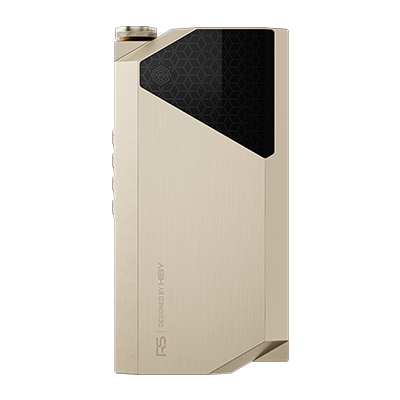

RS8II is a portable HiFi HD lossless music player

1. Based on the Android 13 system, equipped with the Qualcomm Dragonwing QCS8550 (8Gen2 same platform) main controller, featuring 16GB RAM and 512GB internal storage.
2. Uses HiBy Music's proprietary DarwinIII decoding architecture, supporting up to DSD1024 and PCM 1536kHz decoding.
3. Supports analog audio output via PhoneOut (PO), LineOut (LO), Balanced, and Balanced LineOut.
4. Supports coaxial output via USB-C (S/PDIF).
5. Supports USB audio output (USB Audio In, USB Audio Out).
6. Supports Bluetooth audio output (supports UAT, LDAC, aptX HD, aptX, AAC, SBC, etc. codecs).
7. Supports digital audio I2S output.
8. Supports MQA 16x unfolding.
9. Supports external MicroSD (TF) cards up to 2TB.
10. Supports Bluetooth 5.3 and dual-band WiFi (2.4G and 5G).
11. Supports PD3.0 fast charging protocol, with a maximum charging power of 80W.
12. Supports local playback, Bluetooth decoding, USB decoding, and more.

2. Button usage instructions

Button distribution

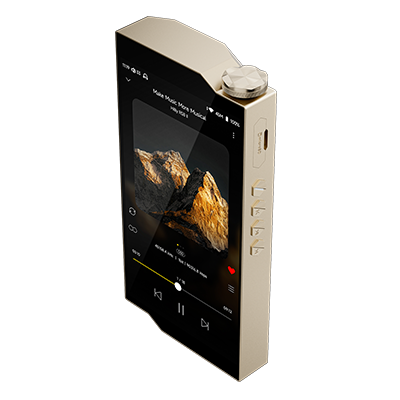

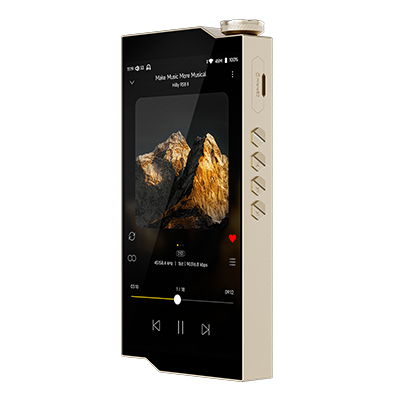

The following introduction is the front view of the player screen as reference:

1. The top right side has the volume knob. From top to bottom on the right side are: MicroSD (TF) card slot, power button, LED indicator, previous track, play/pause, next track.

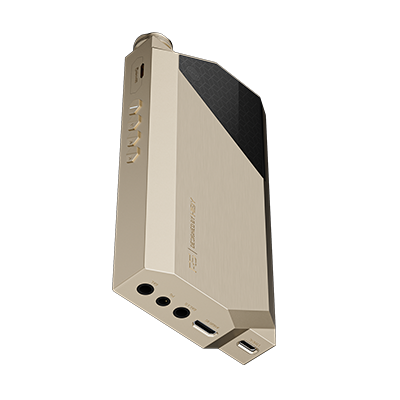

2. From left to right at the bottom: Type-C, AUDIO IIS, BAL.LO, PO, BAL

2. Button usage instructions

key distribution

The following introduction is based on the front view of the player screen:

1. On the right side of the top is the volume knob
2. The right side from top to bottom is: MicroSD (TF) card slot, power button, LED indicator, previous song, playback pause, next song

Button	Function
Power button	Long press: power on and off; short press: switch screen
Previous song	Short note: Previous song
Next song	Short button: Next song
Play Pause	Short button: Play Pause
Volume Knob	Rotate: Increase and decrease the volume
Power button + next song	Press and hold for 10s at the same time for more than 10s: Hardware reset
Press and hold the previous song to turn on	Use it to enter recovery mode, see the specific operationRecovery Mode

Recovery Mode

In recovery mode, you can not enter the system for clearing and upgrading system data.

1. Press and hold the previous song to turn on, and a robot interface is displayed.
2. In this interface, press and hold the power button, press play and pause, and then enter recovery mode
3. Play pause key and next song key are used to make selections, and power keys are used to make sure.

3. Interface usage instructions

Interface Distribution

The following introduction is the front view of the player screen as reference:

1. On the left is the MicroSD(TF) card slot
2. The bottom is from left to right:Type-C、AUDIO IIS、BAL.LO、PO、BAL

Audio output interface

audio output interface

The audio output interface can be provided to different audio devices for use, such as: headphones with 3.5mm interface, headphones with 4.4mm balanced interface, balanced input amplifier with 4.4mm interface and other devices.

1. PO: 3.5mm single-ended interface headphone output
2. BAL: 4.4mm balanced interface headphone output
3. BAL LO: 4.4mm line output of balanced interface

USB port

The physical interface used by the USB interface is the Type-C interface, through which the following functions can be provided. The player allows USB to work in two different modes:USB OTGandUSB Device。

USB OTG

When the player asUSB OTGWhen using it (can be understood as USB on the computer):

1. Connecting a USB or mobile hard drive: Read data from a USB or mobile hard drive;
2. Connect to a USB decoder or USB small tail: output high-definition audio data;
3. Connect to a wired network card: access the Internet through a wired network;

USB device

When the player asUSB DeviceWhen using:

1. USB MTP (USB file management), some questions about the use of USB MTP can be foundHere 。
2. USB DAC (USB sound card), some questions about using USB Audio can be foundHere 。

Coaxial signal interface

coaxial signal interface

The physical interface used by the coaxial signal interface is the Type-C interface, and the transmitted audio signals adopt the S/PDIF interface protocol. Through this interface, high-standard audio digital signal output can be provided, which can be used through this interface.

Charging interface

charging interface

The physical interface used by the charging interface is the Type-C interface, through which the charger can be connected to the charger.

1. Charging supports PD fast charging protocol. Please use standard PD fast charging head and standard C2C cable for PD fast charging.
2. Charging also supports ordinary charging heads, which can reach a charging current of 5V@2A.

MicroSD(TF) card interface

MicroSD(TF) card interface

The MicroSD(TF) card interface is used to insert a MicroSD(TF) card, mainly to expand storage capacity. The HiBy player can support MicroSD(TF) cards up to 2TB, and the player supports file systems including FAT32\exFAT\NTFS.

LED Indicator

Status	Color
Normal	Light blue ■
Normal charging	Red breathing effect (normal)■
Fast Charging	Red Breathing Effect (Fast)■
PCM(~48k)	Yellow■
PCM(88.2k~192k)	Cyan■
PCM(352.8k~)	Orange■
DSD	White ■
MQA	Green■
MQA Studio	Blue■
MQA Core (MQB)	Magenta■

4. Get started

First boot

first boot

1. Press and hold the boot key for 2s, and the player enters the boot state The first boot time will be longer.
2. After the startup animation is completed, the system enters the boot settings interface
3. Select the corresponding language
4. Select the corresponding time zone
5. Complete the setup
6. The first startup is completed

Navigation bar

The system navigation bar is at the bottom of the screen, and there are two modes of the navigation barSystem navigationand3-button nvigatoin, default isSystem navigation。
Users can operate quickly on the navigation bar throughSettings -》System -》 Gestures -》 System navigationUsers can switch navigation bar mode.

gesture navigation

1. Slide from the navigation bar: Return to desktop
2. Slide over from the navigation bar: Go to the task list
3. Swipe left and right on the navigation bar: quickly switch to the previous and next APP

"Three Buttons" Navigation

1. The middle button is Home key: Return to the desktop
2. The button on the right is the taskbar key: enter the task list
3. The button on the left is the return key: Return Note: Modifying the display size may cause the left and right button function swap of the "Three Buttons" navigation.

Global gestures

global gesture

1. Swipe from the left and right screens to the inside of the screen: Return
2. Three fingers slide: screenshot
3. Double-click the screen: Open the screen (this function is turned off by default and needs to be turned onSettings -》System -》 Gestures -》 Double click wake up）

Main interface

Introduce the relevant functions of the main interface and some common operations. The main interface contains a desktop and an app list. Slide on the desktop to enter the app list.

desktop

Desktop

1. The status bar is at the top For information descriptions about the status bar, refer to the information descriptions for the status bar later.

2. The desktop icon area in the middle The desktop area can be used to place fast operationsApp Icon、Widgetswait Press and hold the blank area of the desktop to pop up the home screen settings, widgets, wallpapers, etc.

3. The bottom is a permanent quick operationApp Icon
   The main purpose is to place some preset high-frequency application shortcuts here to facilitate users to operate quickly.

4. Press and hold the blank area on the desktop to call it outHome settings、Widgets、Wallpapers

   • Home screen settings: You can set some active behaviors
   • Widget: You can add the required onesWidgets
   • Wallpaper: You can modify the default wallpaper

Application List

App List

1. existDesktopSlide up with a single finger to enter the application list
2. Long pressApp IconCan call out the menu
3. Long pressApp IconAnd move, you canApp IconAdd to desktop for quick operation

Status bar

status bar

Some information on the status bar.

Status bar left

Left to the Status Bar

1. Volume value Display the volume value of the current output port. The volume value in red indicates that the current volume value is too high. Users need to be careful not to use it for a long time at high volume, otherwise it may cause hearing loss. After pulling down the notification bar, clicking the volume value position can trigger the volume control UI, and the current output accent volume can be adjusted under the volume UI.

2. Class A/AB status indicators Indicates whether the current amplification operation mode is Class A or Class AB.

3. Other notification information If the notification information sent by the application used by the user is insufficient in the current position, it may be collapsed in the notification bar. The user needs to pass the status bar position to release the notification bar.

On the right side of the status bar

right of the status bar

1. Hide other states Display content: a small dot. It means that there are too many statuses on the status bar, which cannot be displayed in full, and some statuses are hidden.

2. Output port status LineOut PhoneOut Balance Balance LineOut

3. Bluetooth status information Displays Bluetooth information, including signal strength, connection status, etc.

4. WiFi status information Displays WiFi information, including signal strength, connection status, etc.

5. Sampling rate information The displayed content is the final output sample rate information.

6. Battery level information Displays battery icon, charging status, percentage and other information. Power percentage switch: Settings -》 Battery -》 Battery percentage.

5. Play music

Import local music

Import music via USB

The player supports connecting to the computer via USB and then using the MTP protocol to transfer files. Here is a brief introduction. For more information about the use of MTP, please refer toHere 。
The following isMacOSandWindowsMake a brief description:

MacOS

MacOS requires a third-party driver to be installed before it can be used. Now there are two options:

app

• Open MTP：https://openmtp.ganeshrvel.com/
• Official Android support:https://www.android.com/filetransfer/

Windows

Systems after Windows 7 have already included MTP drivers and can be used directly.

MTP usage problem

You can try it as follows:

• Make sure the USB cable connection is normal
• After confirming that the USB cable is connected, select File Storage in USB in the notification bar;
• Restart the computer and try again
• Restart the player and try again

Import music via MicroSD(TF) card

MicroSD(TF) card

Insert the MicroSD(TF) card into the player's MicroSD(TF) card slot. The player supports three file formats: FAT32\exFAT\NTFS.

Play local music with HiBy Music

1. Open [HiBy Music]
2. If you have never scanned a song, it will be displayed as follows. Click [Start Scan] at this time to scan the song and build a song library.

Scan songs

1. Just wait for the scan to complete, click the song to play it

For more instructions on using HiBy Music, please refer toHere。

Play streaming music with HiBy Music

1. Please make sure you are connected to the network
2. Open [HiBy Music]
3. Click the [Streaming] icon at the top menu, click again to select different streaming services, such as [Sony Selection] [HiFi Music], and other languages can choose [Tidal] [Qobuz]

Streaming

1. Choose [Sony Selection], and there are free trial songs at the bottom

Sony Selected Free Songs

1. Select [HiFi Music] and log in to your account. Users can listen to MP3-specific tracks for free

HiFi Music Song

1. Select [Tidal] [Qobuz] and you need to log in to the corresponding platform account and then use the corresponding service.

For more instructions on using HiBy Music, please refer toHere。

6. Settings

WiFi settings

Entrance: Settings -> WLAN -> Open WLAN -> It will automatically scan, and then select the corresponding WiFi network connection.

How to add a hidden network?

Enter Settings -》WLAN -》Advanced Options -》Hide Network -》Set to "Yes"

Bluetooth settings

Entrance: Settings -> Bluetooth -> Open Bluetooth

USB

Entrance: Settings -》 USB -》 USB Working Mode

USB working mode

1. Automatic mode It can automatically determine whether the USB is operating in USB OTG mode or device mode based on the plugged peripheral.
2. OTG mode Force USB to work in USB OTG mode. If the peripherals inserted by the user are: USB drive, mobile hard drive, USB decoder, USB small tail, USB network card and other devices, and the player cannot recognize it, you can force the player to work in this mode.
3. Device Mode Force USB to work in USB device mode. If the user wants to connect the player as a peripheral to a computer or other host, and the computer or other host fails to recognize it, the player can be forced to work in this mode.

Working mode

Entrance: Settings -》 Working mode

work mode

Used to change the player's working mode:

1. Android mode The player's default working mode, in this mode, you can switch different third-party software like using an Android phone, and download and install third-party software.

2. Pure tone mode With HiBy Music as the only front desk software, in this mode, users can rule out other interference factors and listen to music more immersively.

3. USB DAC mode USB DAC mode is used as a USB decoder, and users can experience the player's sound through a USB connection. You can click on the specific usage methodHere。

4. Bluetooth Receive Mode The Bluetooth reception mode is to use the player as a Bluetooth decoder. Through Bluetooth connection, you can accept Bluetooth music from different phones, and feel different sounds directly output from the phone. You can click on the specific usage methodHere。

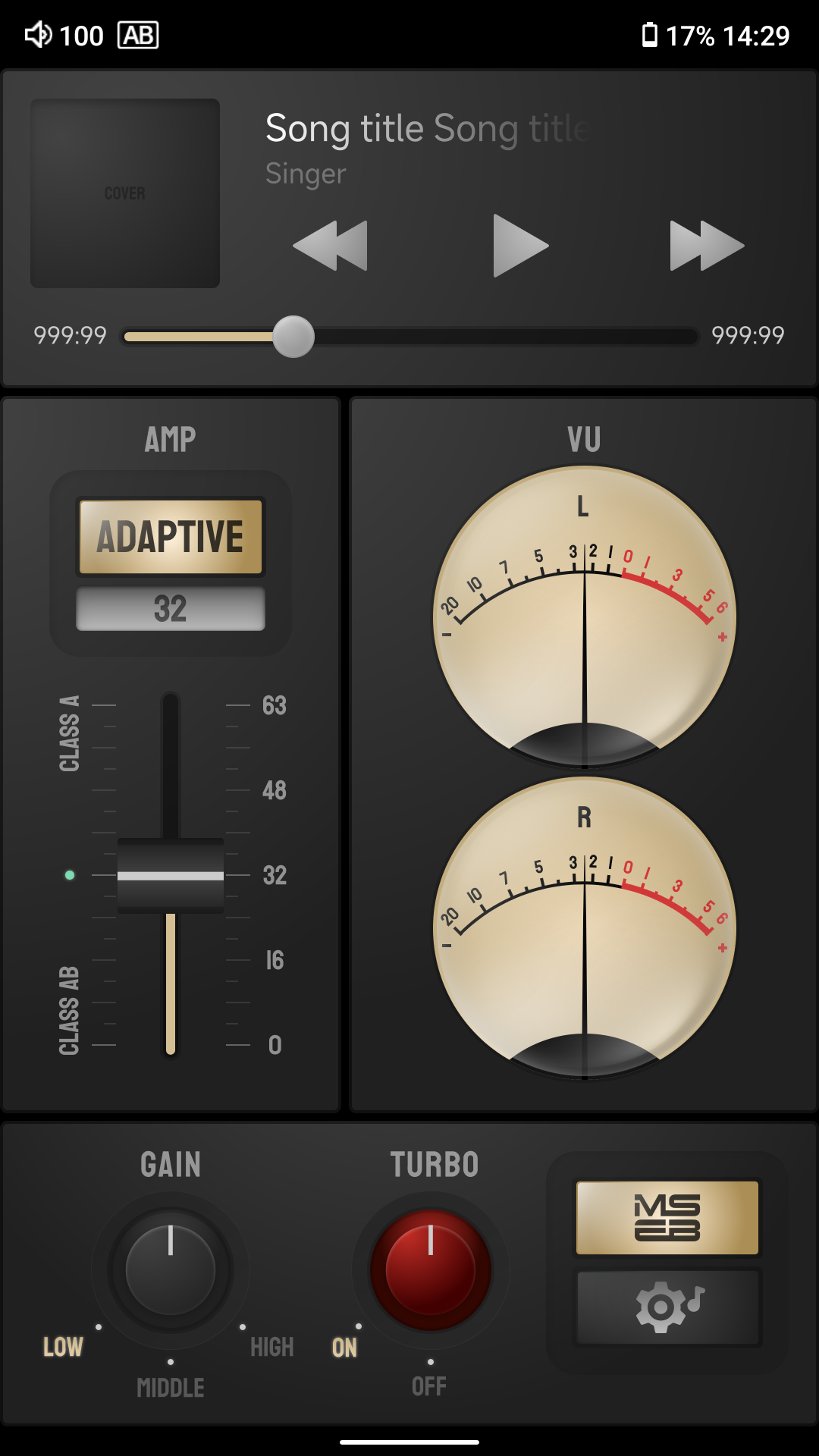

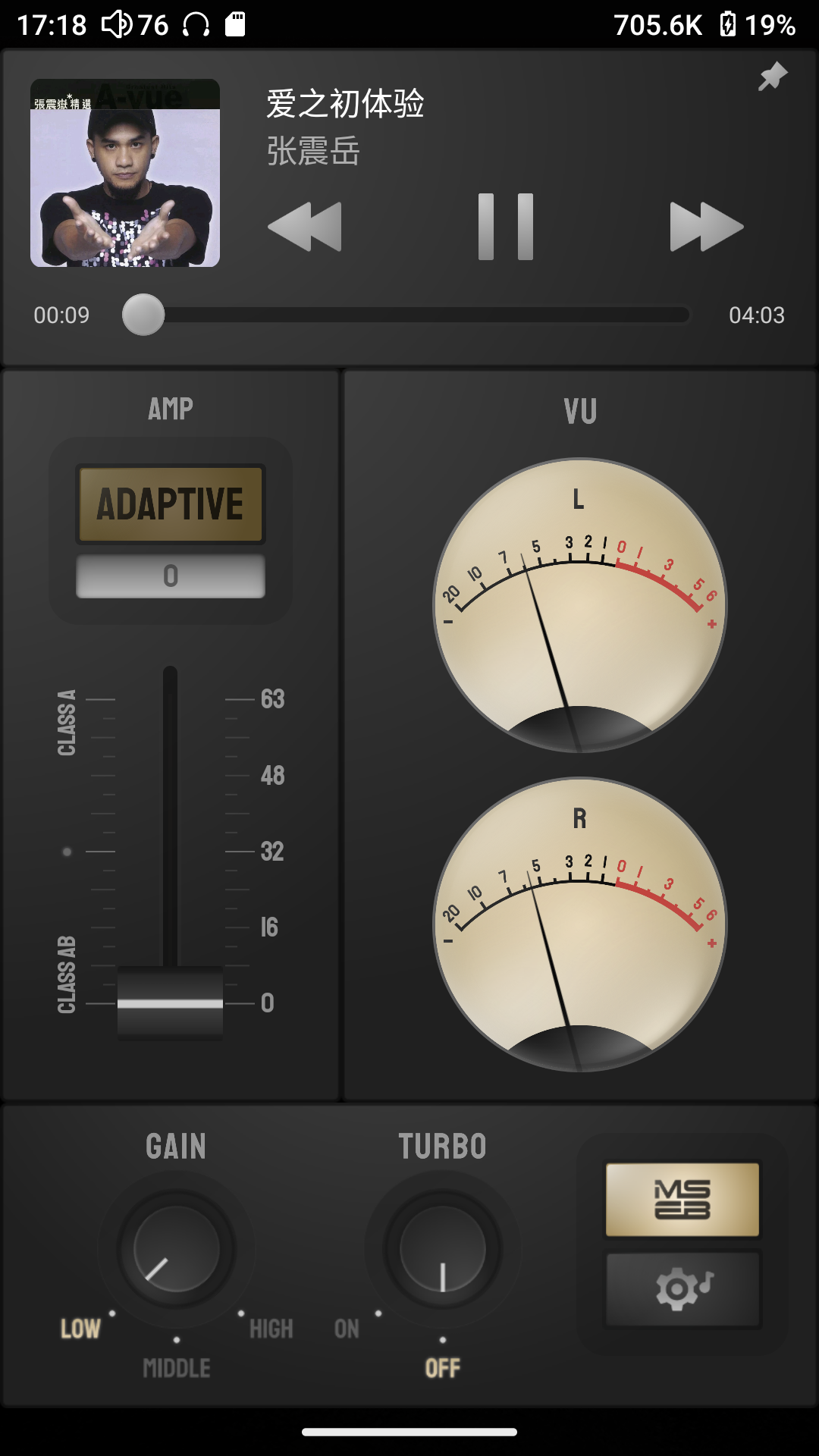

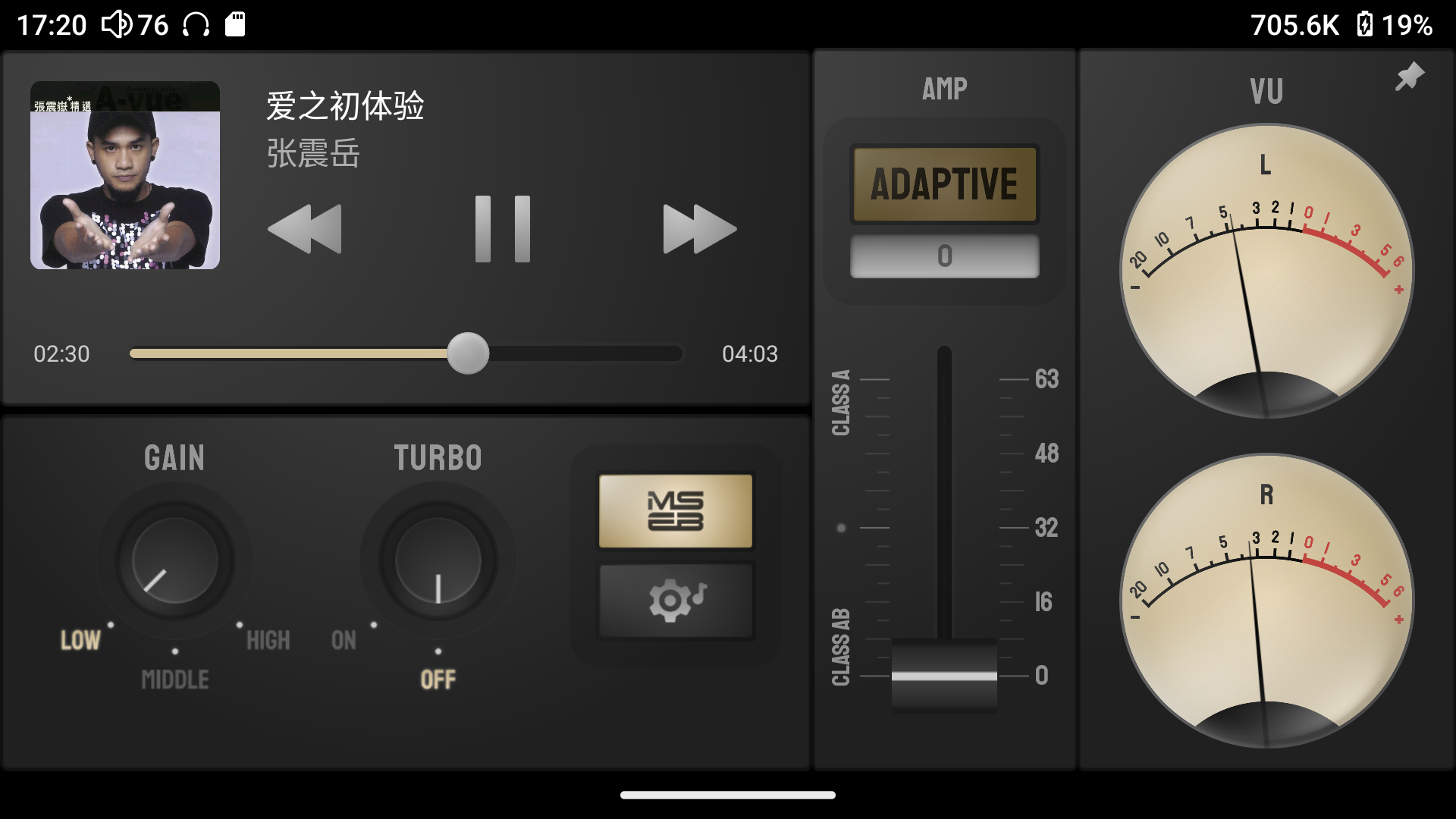

Audio settings

audio settings

1. 1.Adaptive AMP adaptive headphone amplifier circuit The Adaptive AMP function can pre-analyze the sound signal, and the real-time adaptive adjustment of the amplification circuit current is distributed between the two sets of Class A and Class AB amp circuits. The 64-level adjustment provides the required amplification type and working power with close to no delay. While reducing power consumption as much as possible, it can also achieve appropriate restoration of the sound and provide a solid sound foundation for music playback.

2. Turbo mode
   Turn Turbo mode on and off to deliver even more thrust.

3. Gain
   Choose from different gain modes: options are Low, Middle, High, with each level varying by 6dB.

4. plug-in
   Choose a sound effect plug-in. Different plug-ins provide a different extended audio processing function.

5. MSEB
   Haibei's unique sound effect setting function provides a more visual description to allow customers to adjust different timbres more intuitively.

6. PEQ
   The sound effect setting function for more professional users provides more professional sound effect settings, so that customers can adjust the sound to their own needs in a wider range and more independently.

7. DSD gain compensation
   Since DSD tracks may have a certain attenuation compared to PCM tracks, you can use this to compensate for DSD tracks.

8. channel balance
   Adjust the volume difference between the left and right channels.
   There are differences between the left and right channels of some devices or there are differences between the left and right hearing of some users, which can be adjusted through this.

9. maximum volume
   Limit the maximum adjustable volume range to avoid volume changes caused by misoperation.

10. Volume knob settings
    Users can set the direction in which the knob responds to volume adjustment according to their own habits.

11. MQA decoding
    Because MQA information is encoded in the audio stream, it may cause a delay in identifying MQA information. If the user feels that the MQA audio support for third-party applications is not good (such as Tidal), the MQA decoding function can be turned off.

12. Spdif digital volume lock
    Lock the Spdif digital signal amplitude. For Spdif decoders that do not support volume adjustment, after unlocking the lock, the volume adjustment function can be realized.

13. Lineout digital volume lock
    Lock the Lineout digital signal amplitude. After unlocking the lock, you can adjust the LineOut volume.

14. USB digital volume lock
    Lock the USB audio digital signal amplitude. For USB decoders that do not support volume adjustment, after unlocking the lock, the volume adjustment function can be realized.

New generation architecture Darwin III

New generation architecture Darwin III

It is independently developed by HIBY and has a national invention patent* (patent number: ZL202110679601.X) Full audio link processing architecture - DARWVIN architecture, welcomes further evolution. The third-generation Darwin architecture DARVVIN II reshapes the entire high-definition audio processing process starting from the design of the underlying core processing architecture.

1. FPGA capacity DARWIN I has a high-speed, high-performance FPGA chip containing more than 100K logic units and up to 212 high-speed DSP units.

2. R2R technology The DARVVIN I architecture uses a high-precision R2R resistor network for digital-to-analog conversion. The digital signal drives the voltage-dividing resistor in the resistor network through a high-speed electronic switch. Different voltage-dividing values ​​can be accurately converted into analog signals corresponding to the original encoding, thereby avoiding high-frequency noise and digital taste caused by the digital modulation process, making the sound history natural, transparent, and rich in musicality.

3. R2R power supply R2R power supply design has also ushered in an evolution. The left and right channels are powered independently, eliminating mutual interference, bringing a purer sound bottom series multi-stage buck circuit, and improving the ripple rejection ratio (PSRR) of the entire power supply.

4. Distortion as low as 0.0008% The THD+N performance of the whole machine has been improved by leaps and bounds, with the actual measurement being less than 0.0008%! In terms of sound purity and dynamic range, it far exceeds similar competing products, truly self-developed interpretation of super flagship-level sound performance.

5. Obtained national invention patent National invention patent [a compensation circuit and digital-to-analog conversion device] Patent number: ZL202110679601.X

Darwin settings

1. Filter mode settings Selecting different PCM filters can provide different filtering methods for users to choose from.

2. Harmonic Controller After setting this option, the harmonics of the overall audio system will change to a certain extent. The larger the value, the stronger the harmonics. The adjustment of harmonics has a greater impact on strings.

Sankofa/AI tone cloning

Benefit from the powerful computing array of CPU+GPU+NPU+FPGA+DSP composed of Qualcomm Yuelong QCS8550 and high-capacity FPGA HIBY is able to use rigorous physical sampling data to use the Sankofa function to overcome the sound styles of various classic equipment (such as LP, MD, CD, tape machines, disk players, etc.), and apply it in real time to the RS8 second-generation global audio playback process.

Sankofa/AI sound clone

1. MD-MT831W A high-performance MD recorder and player launched by Sharp in 2001, equipped with a 6-band digital EQ and high dynamic amplification circuit. The sound is transparent and clean, with strong analytical power, balanced and atmospheric, wide sound field and rich details.

2. MZ-E730 Sony's high-end portable single-player MD launched in 2004. The player is equipped with a newly developed HD digital amplifier, which has clear sound quality and can effectively reduce the noise of the unit. It is equipped with a Type-S decoding chip to enhance the sound quality and improve the overall listening experience. It supports 4 preset sound field modes and 6 equalizer modes. It adopts a lightweight magnesium alloy ultra-thin body, a sophisticated mechanical structure, and excellent battery life and portability. Neutral and transparent sound style, equipped with the second generation HD DIGITAL AMP, it has ultra-high sound accuracy, excellent full-range resolution, rich sound details, and balanced three-frequency distribution. The sound field is wide and spacious, and the background is stable. It is the representative of the sound quality in later portable MDs.

3. MZ-E730 Sony's high-end portable MD player launched in 2002 uses a lightweight magnesium alloy body and a mature ATRAC DSP Type-S decoding chip, supporting ATRAC SP and ATRAC3 (LP2/LP4) playback. It has an ultra-thin body, sophisticated mechanical structure, and excellent battery life and portability. The sound is warm and smooth, the mid-frequency is full and natural, the vocals are close to the ear and listenable, the low frequency is moderate and clean, the high frequency is soft and non-irritating, and the overall style is towards the analog, musical and listenable Sony E series style.

4. MZ-NH1 Sony's Hi-MD flagship recorder and player launched in 2004 supports Hi-MD disks up to 1GB, uses a high-grade aluminum-magnesium alloy casing, has high-quality digital-to-analog conversion and a new Hi-MD audio architecture. The sound is clear and transparent, the low frequency is clean and tight, the mid frequency is accurate and full, and the high frequency is well extended but not harsh; the overall sound is more digital, transparent, and high-resolution.

5. SS32-SV The portable MD player launched by Sharp has a lightweight body and good ergonomic layout, providing stable ATRAC playback quality. The sound is refreshing, with a slight brightness in the mid- and high-frequency, moderate low-frequency, and the overall performance is balanced and listenable.

6. SJ-MJ100 The ultra-lightweight MD player launched by Panasonic has an extremely portable design and was the representative model of the year that focused on "ultra-thin and portable". The sound is light and hearty, the low frequency is light, the mid frequency is soft, and the high frequency is bright. The overall sound is clear and fast Japanese style.

7. SJ-MR220 Panasonic's recorder and player models adopt high-efficiency amplification circuits and low-power consumption designs, making them both lightweight and stable in recording capabilities. The sound is neutral and warm, with stable low frequency, natural mid frequency, smooth and non-harsh high frequency, and the overall atmosphere is comfortable and durable.

Display settings

Entrance: Settings -> Display settings

Show Settings

Used to change the display related settings of the player:

1. App icon style To switch to different App icon styles, currently available are:跟随主题、格调绿金、典雅银灰and原始风格。
   原始风格: The overall style is native to Android, the App icon has not been adjusted

2. Automatically rotate the screen Adjust the direction of the display screen and whether it is a horizontal or vertical screen display according to the direction detected by the sensor.

3. Lock vertical flip The fixed display direction is flipped up and down, which makes it easier for users to connect headphones or USB ports from the top.

4. Turn on the power indicator Power indicator switch, used to turn the LED indicators on or off.

5. Seashell volume pop-up window The HiBy volume pop-up window switch is used to turn on and close the HiBy custom-made volume pop-up window. When closing, it uses the Android native volume pop-up window.

Battery settings

Entrance: Settings -》 Battery

battery

Used to change the player's battery and power management related settings:

1. Maximum charge capacity It is used to limit the maximum charging percentage of the battery and can only be used for charging on the power supply. This part of the charging off will not take effect.

2. Battery percentage Used to switch whether to limit the battery percentage in the notification bar.

3. Idle shutdown After turning on, the device will automatically shut down after the set time has arrived, so as to save power.

4. Timely shutdown After turning on, the device will automatically shut down regardless of whether there is any operation after the set time is reached to save power.

7. Preinstalled applications

This introduces some related applications preinstalled by HiBy Player and the functions of these applications. It does not currently support uninstalling preinstalled applications, but some applications support shutdown and running.

preinstalled application

1. Seashell Music Player software provided by HiBy, you can view the specific operation instructionsHere。

2. HiByCast Server The local area network same-screen control software provided by HiBy. You can view the specific operation instructions.Here。
   【How to turn off the run】Settings -》 Applications -》 HiByCast

3. Cool An In the domestic application market with relatively few advertising, you can download the required third-party applications on the market. 【How to turn off the run】Settings -》 Applications -》 Cooan Application Market

4. Google Play Google App Market, you can download the required third-party apps on the market. 【How to turn off the run】Settings -》 Applications -》 Google App Market

5. Via Ultra-lightweight browser, through which you can browse web pages. Similar applications include: Chrome, Edge, etc.;

8. USB DAC mode

USB DAC Mode Guidelines

USB DAC mode description

When the player is working in USB DAC mode, you can think of the player as a USB HD decoding receiver or as a USB sound card. The player works in USB DAC mode supports the USB Audio Class 2.0 (UAC2) protocol, but does not support USB Audio Class 1.0 (UAC1), so the host side also needs to support USB Audio Class 2.0 (UAC2).

How to enter USB DAC mode

1. From the top of the player, drop down on the notification bar, select [Work Mode], and then select [USB DAC Mode].

2. From the desktop icon to enter [Settings]-》[Work Mode]-》Select [USB DAC Mode].

Different host systems will have different power supply, so USB DACs offer two working modes:

USB DAC working mode

1. USB DAC mode (charging) After selecting this mode, the current provided by the host is not only used to work and use the player, but also to charge the player. Therefore, it is recommended to choose this mode in scenarios where the host power supply current is large, such as when the host is a computer.

2. USB DAC mode (not charged) After selecting this mode, the current provided by the host is only used to work for the player. Therefore, it is recommended to select this mode in scenarios where the host power supply current is small. For example, when the host is a mobile phone, select this mode.

There are certain differences in the support of USB Audio Class 2.0 (UAC2) for different host systems. Please confirm the support according to the corresponding system. Please jump to the details.Here, the following provides a brief reference:

Support situation of different hosts

1. Windows Windows (Win7/Win8/Win10 1703 previous version) does not support the USB Audio Class 2.0 (UAC2) protocol, so drivers are required to be installed to use. Please refer to the driver installation.Here。
   Windows (Win10 1703 later) begins to support USB Audio Class 2.0 (UAC2) protocol, plug and play. When the computer uses an external power supply, it is recommended to use USB DAC mode (charging). When the computer is powered by a battery, it is recommended to use USB DAC mode (not charged).

2. MacOS MacOS itself already comes with a driver, and you can connect the player to the MacOS computer via a USB cable. When the computer uses an external power supply, it is recommended to use USB DAC mode (charging). When the computer is powered by a battery, it is recommended to use USB DAC mode (not charged).

3. Linux distribution Linux's USB DAC support is determined by the kernel. Whether the kernel of different distributions is turned on USB sound card functions is uncertain. For Linux distributions of unsupported USB DACs, you can compile the kernel to implement USB sound card functions by yourself. Or find a third-party app to support USB DAC functionality. When the computer uses an external power supply, it is recommended to use USB DAC mode (charging). When the computer is powered by a battery, it is recommended to use USB DAC mode (not charged).

4. Android The Android side distinguishes between exclusive and non-exclusive methods.

Android non-exclusive Just plug the USB decoder (such as HiBy FC4/HiBy FC6) into the USB port of your phone and use it. If you insert it, you can download HiBy Music and try the exclusive mode of HiBy Music. Otherwise, the phone will not support it. Please contact the mobile phone manufacturer to confirm.

Exclusive Android use Download, install HiByMusic. Enter HiByMusic. Swipe right to open the settings options -> Settings -> Click HiByMusic exclusive USB output, open the exclusive output. Insert the USB decoder (such as HiBy FC4/HiBy FC6) directly into the phone. The phone will pop up "Allow SeaByMusic to access HiBy FC4" and click Allow.

It is recommended to use USB DAC mode (not charged) to save battery power on your phone or tablet.

1. iOS iOS itself already comes with a driver, and you can connect the player to iPhone/iPad via a USB cable. It is recommended to use USB DAC mode (not charged) to save battery power on your phone or tablet.

2. Game console So far, XBOX/PS/Switch and other game consoles only support USB Audio Class 1.0 (UAC1), so the player's USB DAC function cannot be used through the game console.

9. Bluetooth Receive Mode

Bluetooth Receive Mode Guide

Bluetooth Receive Mode Description

When the player is working in Bluetooth reception mode, you can think of the player as a Bluetooth HD decoding receiver or as a Bluetooth headset (after connecting the headset). The player supports decoders such as LDAC/AAC/SBC, so the host side also needs to support encoders such as LDAC/AAC/SBC. Android phones generally support LDAC/AAC/SBC and other encoders, while iPhones only support AAC/SBC encoders for the time being.

How to enter Bluetooth Receive Mode

1. From the top of the player, down the notification bar, select Work mode, and then select Bluetooth Receive Mode.
2. From the desktop icon to enter Settings -》Working Mode -》Bluetooth Receiving Mode.

How to connect to Bluetooth Receive Mode

1. When switching to Bluetooth reception mode, the player will automatically enter the pairing state, and when entering Bluetooth reception mode again, it will automatically connect to the device once;
2. Turn on Bluetooth on the mobile phone and connect to the player device you have found;
3. Play songs on mobile phone;

What to do if you cannot connect to Bluetooth reception mode

1. Exit Bluetooth reception mode, enter Bluetooth settings, and delete the Bluetooth pairing of the corresponding phone.
2. Enter Bluetooth settings on the mobile phone and delete the Bluetooth pairing of the corresponding player.

10. Frequently Asked Questions

• FAQs can be foundHere
